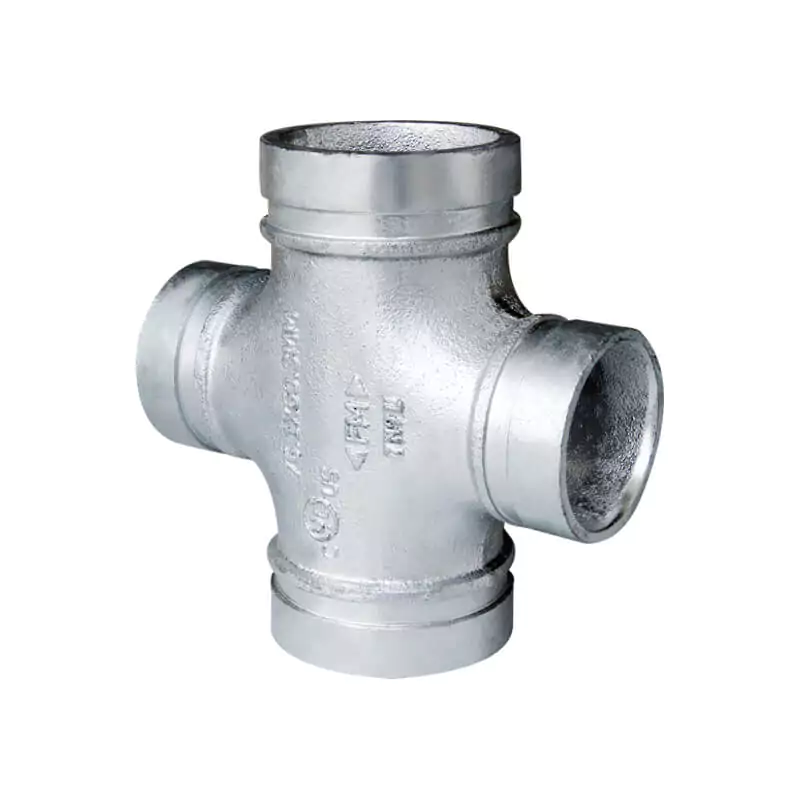

Grooved reducing cross

Grooved reducing cross

Category
  • Certificate: UL Listed / FM Approved
  • Standard: ANSI / UL 213C
  • Material: Ductile iron ASTM A536, 65-45-12
  • Rated pressure: 300 ~ 500 psi
  • Surface: Red painting / hot dip galvanized

Product Details

Grooved reducing cross has a cross shape to get its name. The branch outlet has different size from the main outlet, and it is used to create two branch pipelines to 90 degree direction.

Available size

Size (Inch / DN / mm) Center to end (mm) Ref. No.
2-1/2″ x 2″ / 65 x 50 / 76.1 x 60.3 76 / 76 G2601 (UL/FM)
3″ x 2″ / 80 x 50 / 88.9 x 60.3 86 / 86 G2602 (UL/FM)
4″ x 2″ / 100 x 50 / 114.3 x 60.3 101 / 101 G2603 (UL/FM)
4″ x 3″ / 100 x 80 / 114.3 x 88.9 101 / 101 G2604 (UL/FM)
5″ x 4″ / 125 x 100 / 139.7 x 114.3 124 / 124 G2605 (UL/FM)
6″ x 2″ / 150 x 50 / 165.1 x 60.3 140 / 140 G2606 (UL/FM)
6″ x 2-1/2″ / 150 x 65 / 165.1 x 76.1 140 / 140 G2607 (UL/FM)
6″ x 3″ / 150 x 80 / 165.1 x 88.9 140 / 140 G2608 (UL/FM)
6″ x 4″ / 150 x 100 / 165.1 x 114.3 140 / 140 G2609 (UL/FM)
6″ x 2″ / 150 x 50 / 168.3 x 60.3 140 / 140 G2610 (UL)
8″ x 2″ / 200 x 50 / 219.1 x 60.3 175 / 175 G2611 (UL/FM)
8″ x 4″ / 200 x 100 / 219.1 x 114.3 175 / 175 G2612 (UL/FM)
8″ x 5″ / 200 x 125 / 219.1 x 139.7 175 / 175 G2613 (UL/FM)
8″ x 6″ / 200 x 150 / 219.1 x 165.1 175 / 175 G2614 (UL/FM)
