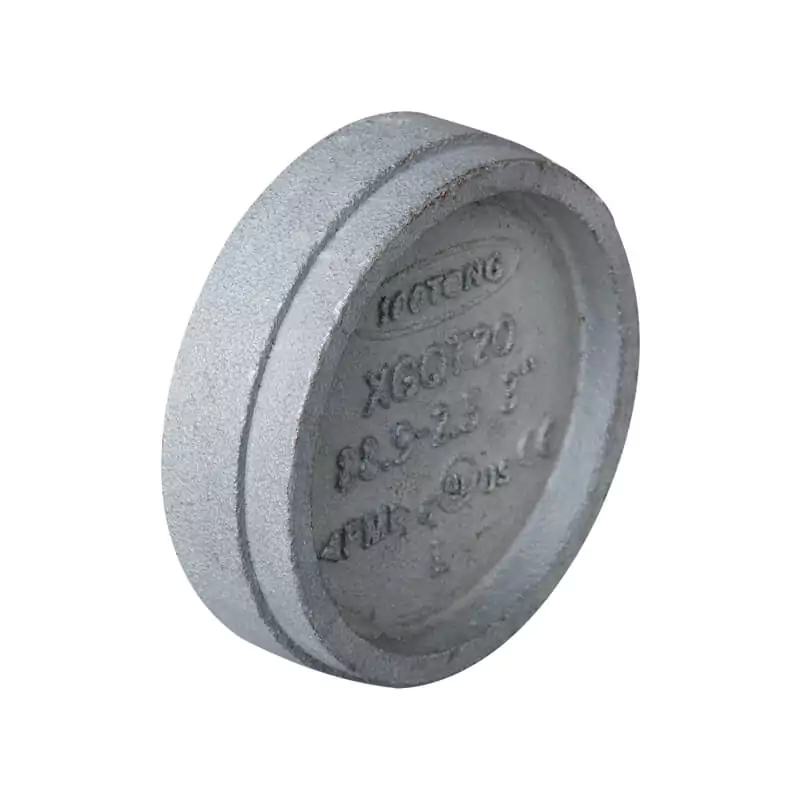

Grooved end cap is used to mount at the pipe end by groove connection, so to block the pipeline and form liquid or gas tight seal.
Available size
| Size | End to end (mm) | Ref. No. |
|---|---|---|
| 1″ / DN25 / 33.7mm | 22 | G4001 (UL/FM) |
| 1-1/4″ / DN32 / 42.4mm | 24 | G4002 (UL/FM) |
| 1-1/2″ / DN40 / 48.3mm | 24 | G4003 (UL/FM) |
| 2″ / DN50 / 60.3mm | 24 | G4004 (UL/FM) |
| 2-1/2″ / DN65 / 73mm | 24 | G4005 (UL/FM) |
| 2-1/2″ / DN65 / 76.1mm | 24 | G4006 (UL/FM) |
| 3″ / DN80 / 88.9mm | 24 | G4007 (UL/FM) |
| 4″ / DN100 / 114.3mm | 27 | G4008 (UL/FM) |
| 5″ / DN125 / 139.7mm | 27 | G4009 (UL/FM) |
| 5″ / DN125 / 141.3mm | 27 | G4010 (UL/FM) |
| 6″ / DN150 / 165.1mm | 27 | G4011 (UL/FM) |
| 6″ / DN150 / 168.3mm | 27 | G4012 (UL/FM) |
| 8″ / DN200 / 219.1mm | 30 | G4013 (UL/FM) |
| 10″ / DN250 / 273mm | 32 | G4014 (UL/FM) |
| 12″ / DN300 / 323.9mm | 32 | G4015 (UL/FM) |
| 14″ / DN350 / 355.6mm | 165 | G4016 (UL) |
