Grooved drain cap with concentric hole

Grooved drain cap with concentric hole

Category
  • Certificate: UL Listed / FM Approved
  • Standard: ANSI / UL 213C
  • Material: Ductile iron ASTM A536, 65-45-12
  • Centre hole: Female thread, NPT / BSPT
  • Rated pressure: ≥ 175 psi (1.21 MPa)
  • Surface: Red painting / hot dip galvanized

Product Details

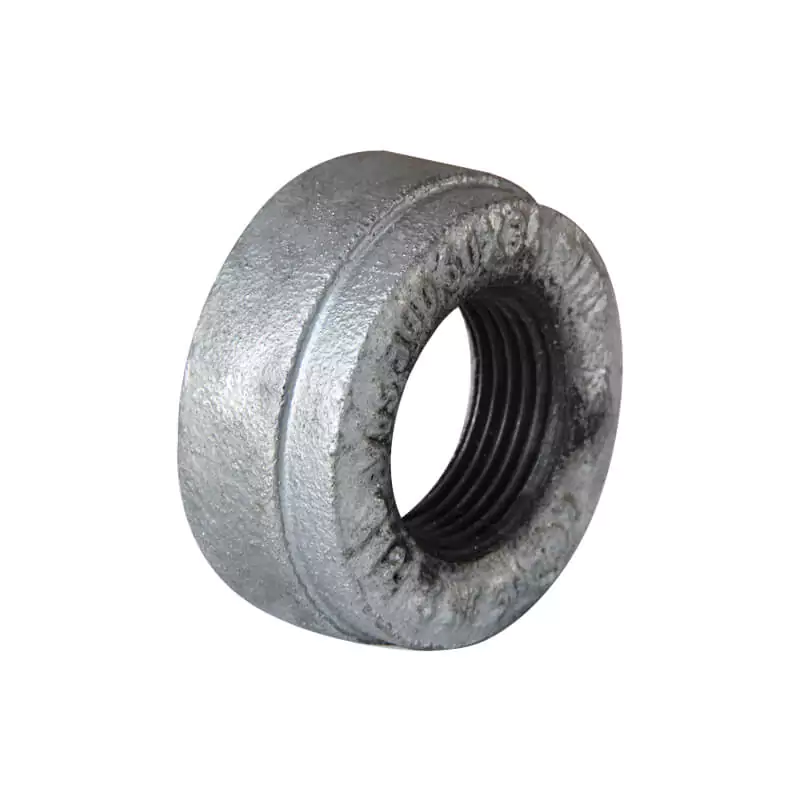

Grooved drain cap with concentric hole is used to mount at the pipe end by groove connection, with a concentric hole for drainage.

Available size

Size (Inch / DN / mm) End to end (mm) Ref. No.
2″ x 1″ / 50 x 25 / 60.3 x 33.7 24 G2001 (ISO)
2-1/2″ x 1″ / 65 x 25 / 76.1 x 33.7 24 G2002 (ISO)
2-1/2″ x 1-1/2″ / 65 x 40 / 76.1 x 48.3 24 G2003 (UL/FM)
2-1/2″ x 2″ / 65 x 50 / 76.1 x 60.3 24 G2004 (ISO)
3″ x 1/2″ / 80 x 15 / 88.9 x 21.3 24 G2005 (UL/FM)
3″ x 1″ / 80 x 25 / 88.9 x 33.7 24 G2006 (UL/FM)
3″ x 1-1/2″ / 80 x 40 / 88.9 x 48.3 24 G2007 (UL/FM)
3″ x 2″ / 80 x 50 / 88.9 x 60.3 24 G2008 (UL)
4″ x 1/2″ / 100 x 15 / 114.3 x 21.3 27 G2009 (UL/FM)
4″ x 1″ / 100 x 25 / 114.3 x 33.7 27 G2010 (UL/FM)
4″ x 1-1/2″ / 100 x 40 / 114.3 x 48.3 27 G2011 (UL/FM)
4″ x 2″ / 100 x 50 / 114.3 x 60.3 27 G2012 (UL)
5″ x 2″ / 125 x 50 / 139.7 x 60.3 27 G2013 (UL)
6″ x 1/2″ / 150 x 15 / 165.1 x 21.3 27 G2014 (UL/FM)
6″ x 1″ / 150 x 25 / 165.1 x 33.7 27 G2015 (UL/FM)

Note: Please download our catalog for more available sizes.

Ask For A Quick Quote

Email us at info@tpmcsteel.com or use the form below. Normally you will be replied within 2 hours during support hours.
