Grooved concentric reducer

Grooved concentric reducer

Category
  • Certificate: UL Listed / FM Approved
  • Standard: ANSI / UL 213C
  • Material: Ductile iron ASTM A536, 65-45-12
  • Rated pressure: ≥ 175 psi (1.21 MPa)
  • Surface: Red painting / hot dip galvanized

Product Details

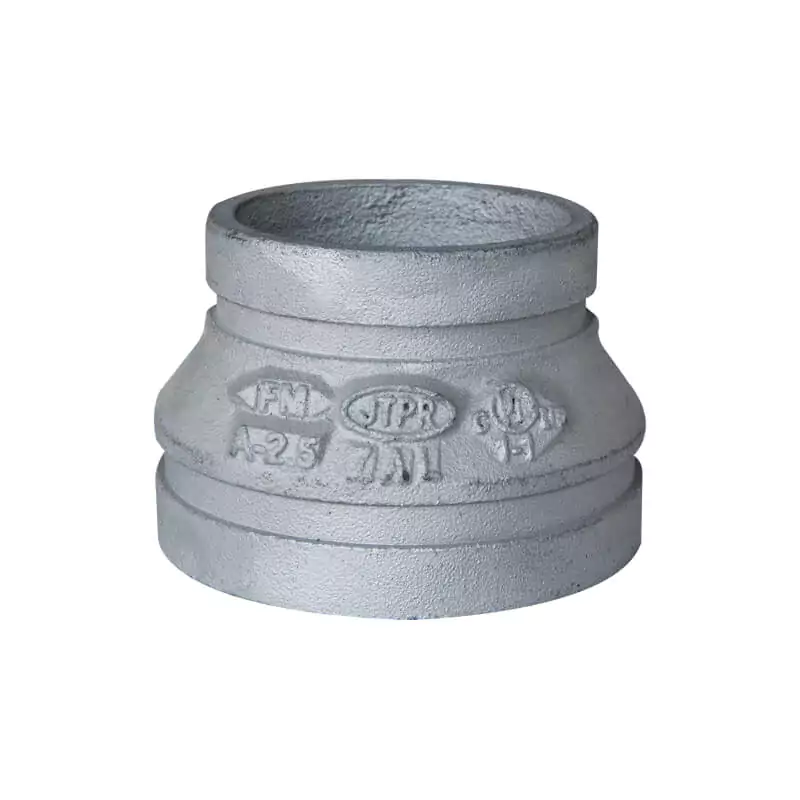

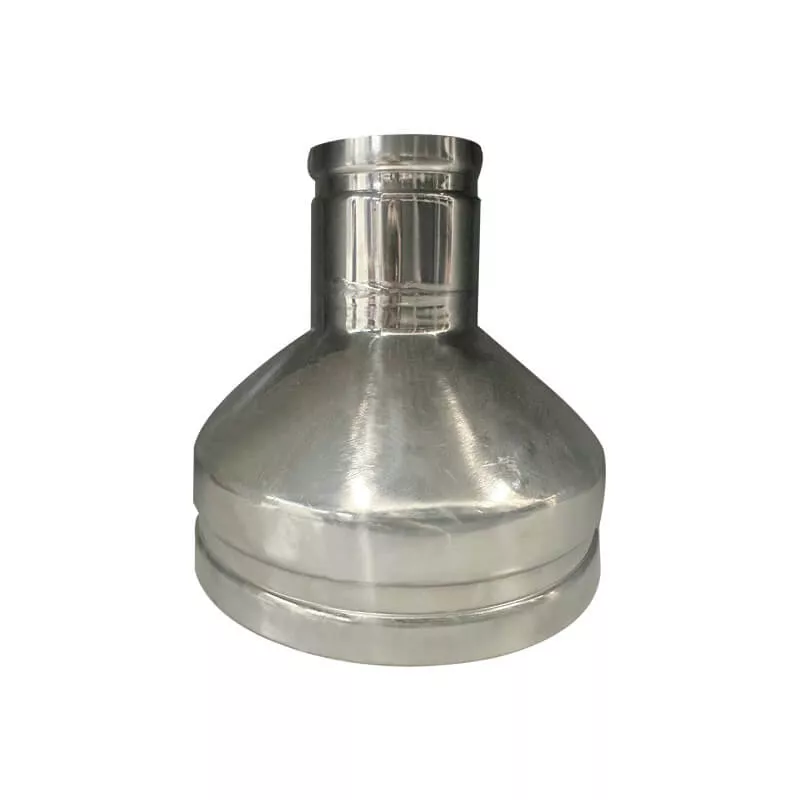

Grooved concentric reducer is cone-shaped pipe fitting with groove connection, and it is used to join two pipes of different diameter at the same axis.

Available size

Size (Inch / DN / mm) End to end (mm) Ref. No.
1-1/4″ x 1″ / 32 x 25 / 42.4 x 33.7 64 G3101 (UL/FM)
1-1/2″ x 1″ / 40 x 25 / 48.3 x 33.7 64 G3102 (UL/FM)
1-1/2″ x 1-1/4″ / 40 x 32 / 48.3 x 42.4 64 G3103 (UL/FM)
2″ x 1″ / 50 x 25 / 60.3 x 33.7 64 G3104 (UL/FM)
2″ x 1-1/4″ / 50 x 32 / 60.3 x 42.4 64 G3105 (UL/FM)
2″ x 1-1/2″ / 50 x 40 / 60.3 x 48.3 64 G3106 (UL/FM)
2-1/2″ x 1″ / 65 x 25 / 73.0 x 33.7 64 G3107 (UL/FM)
2-1/2″ x 1-1/4″ / 65 x 32 / 73.0 x 42.4 64 G3108 (UL/FM)
2-1/2″ x 1-1/2″ / 65 x 40 / 73.0 x 48.3 64 G3109 (UL/FM)
2-1/2″ x 2″ / 65 x 50 / 73.0 x 60.3 64 G3110 (UL/FM)
2-1/2″ x 1″ / 65 x 25 / 76.1 x 33.7 64 G3111 (UL/FM)
2-1/2″ x 1-1/4″ / 65 x 32 / 76.1 x 42.4 64 G3112 (UL/FM)
2-1/2″ x 1-1/2″ / 65 x 40 / 76.1 x 48.3 64 G3113 (UL/FM)
2-1/2″ x 2″ / 65 x 50 / 76.1 x 60.3 64 G3114 (UL/FM)
3″ x 1″ / 80 x 25 / 88.9 x 33.7 64 G3115 (UL/FM)

Note: Please download our catalog for more available sizes.
