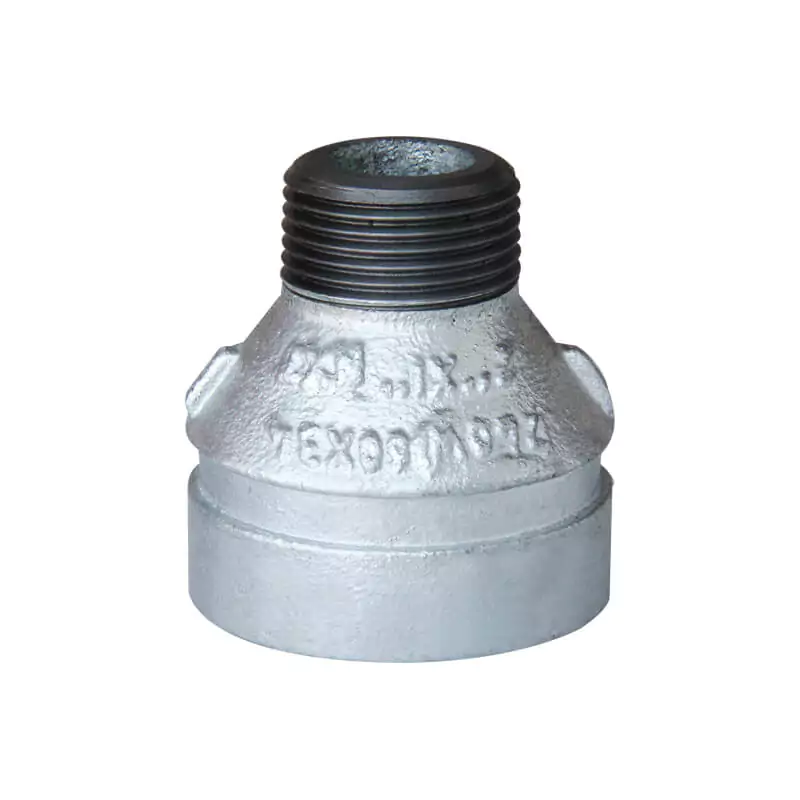

Grooved concentric reducer with male threaded outlet

Category Grooved fittings

Certificate: UL Listed / FM Approved
Standard: ANSI / UL 213C
Material: Ductile iron ASTM A536, 65-45-12
Thread run: Male thread, NPT / BSPT
Rated pressure: ≥ 175 psi (1.21 MPa)
Surface: Red painting / hot dip galvanized

Download Grooved concentric reducer with male threaded outlet

Product Details

Grooved concentric reducer with male threaded outlet is cone-shaped pipe fitting with groove and male thread connection convertion, and it is used to join two pipes of different diameter at the same axis.

Available size

Size (Inch / DN / mm)	End to end (mm)	Ref. No.
2″ x 1″ / 50 x 25 / 60.3 x 33.7	64	G3401
2″ x 1-1/4″ / 50 x 32 / 60.3 x 42.4	64	G3402
2″ x 1-1/2″ / 50 x 40 / 60.3 x 48.3	64	G3403
2-1/2″ x 1″ / 65 x 25 / 73.0 x 33.7	64	G3404
2-1/2″ x 1-1/4″ / 65 x 32 / 73.0 x 42.4	64	G3405
2-1/2″ x 1-1/2″ / 65 x 40 / 73.0 x 48.3	64	G3406
2-1/2″ x 2″ / 65 x 50 / 73.0 x 60.3	64	G3407
2-1/2″ x 2″ / 65 x 50 / 76.1 x 60.3	64	G3408
3″ x 1″ / 80 x 25 / 88.9 x 33.7	64	G3409
3″ x 1-1/2″ / 80 x 40 / 88.9 x 48.3	64	G3410
3″ x 2″ / 80 x 50 / 88.9 x 60.3	64	G3411
3″ x 2-1/2″ / 80 x 65 / 88.9 x 73.0	64	G3412
4″ x 1″ / 100 x 25 / 114.3 x 33.7	76.1	G3413
4″ x 1-1/2″ / 100 x 40 / 114.3 x 48.3	76.1	G3414
4″ x 2″ / 100 x 50 / 114.3 x 60.3	76.1	G3415
