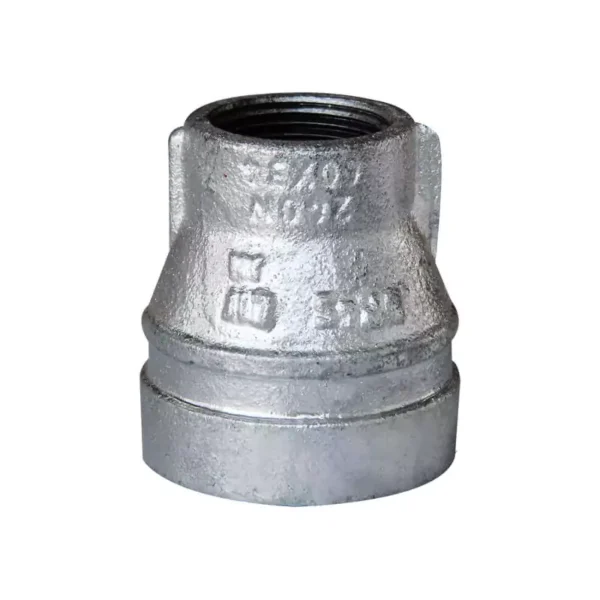

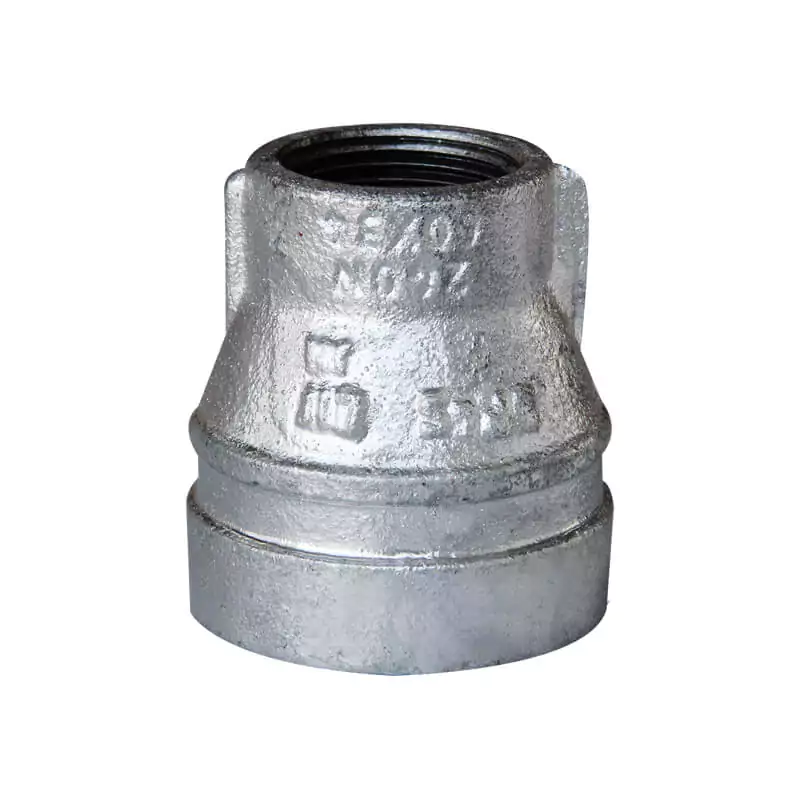

Grooved concentric reducer with female threaded outlet

Grooved concentric reducer with threaded run

Category Grooved fittings

Certificate: UL Listed / FM Approved
Standard: ANSI / UL 213C
Material: Ductile iron ASTM A536, 65-45-12
Thread run: Female thread, NPT / BSPT
Rated pressure: 300 ~ 500 psi
Surface: Red painting / hot dip galvanized

Download Grooved concentric reducer with female threaded outlet

Product Details

Grooved concentric reducer with female threaded outlet is cone-shaped pipe fitting with groove and female thread connection convertion, and it is used to join two pipes of different diameter at the same axis.

Available size

Size (Inch / DN / mm)	End to end (mm)	Ref. No.
1-1/2″ x 1″ / 40 x 25 / 48.3 x 33.7	64	G3301 (UL)
2″ x 1/2″ / 50 x 15 / 60.3 x 21.3	64	G3302 (UL/FM)
2″ x 3/4″ / 50 x 20 / 60.3 x 26.9	64	G3303 (UL/FM)
2″ x 1″ / 50 x 25 / 60.3 x 33.7	64	G3304 (UL/FM)
2″ x 1-1/4″ / 50 x 32 / 60.3 x 42.4	64	G3305 (UL/FM)
2″ x 1-1/2″ / 50 x 40 / 60.3 x 48.3	64	G3306 (UL/FM)
2-1/2″ x 1″ / 65 x 25 / 73.0 x 33.7	64	G3307 (UL/FM)
2-1/2″ x 1-1/4″ / 65 x 32 / 73.0 x 42.4	64	G3308 (UL/FM)
2-1/2″ x 1-1/2″ / 65 x 40 / 73.0 x 48.3	64	G3309 (UL/FM)
2-1/2″ x 2″ / 65 x 50 / 73.0 x 60.3	64	G3310 (UL/FM)
2-1/2″ x 1/2″ / 65 x 15 / 76.1 x 21.3	64	G3311 (UL/FM)
2-1/2″ x 3/4″ / 65 x 20 / 76.1 x 26.9	64	G3312 (UL/FM)
2-1/2″ x 1″ / 65 x 25 / 76.1 x 33.7	64	G3313 (UL/FM)
2-1/2″ x 1-1/4″ / 65 x 32 / 76.1 x 42.4	64	G3314 (UL/FM)
2-1/2″ x 1-1/2″ / 65 x 40 / 76.1 x 48.3	64	G3315 (UL/FM)
