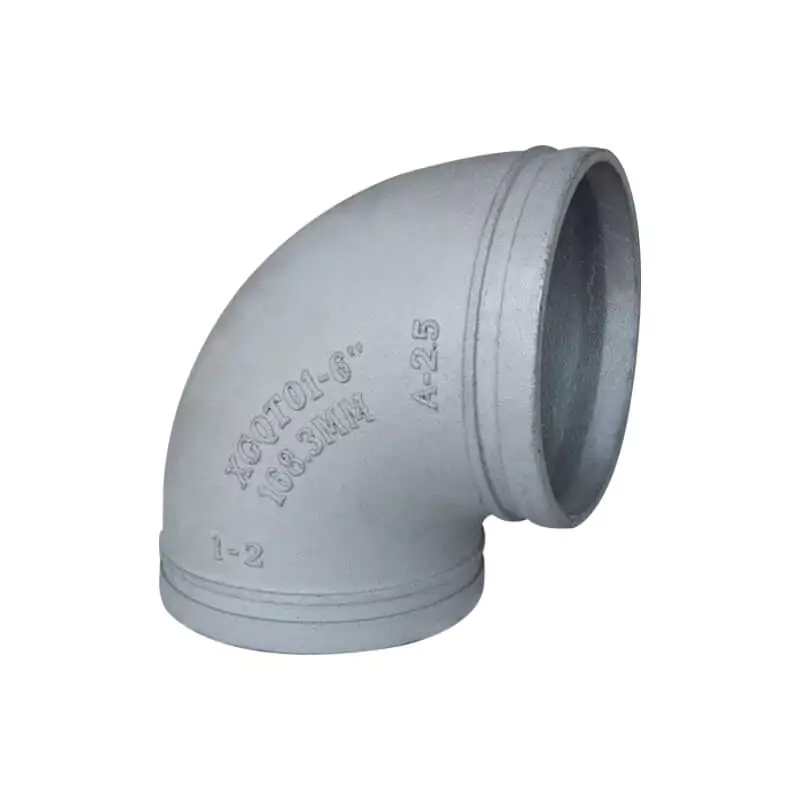

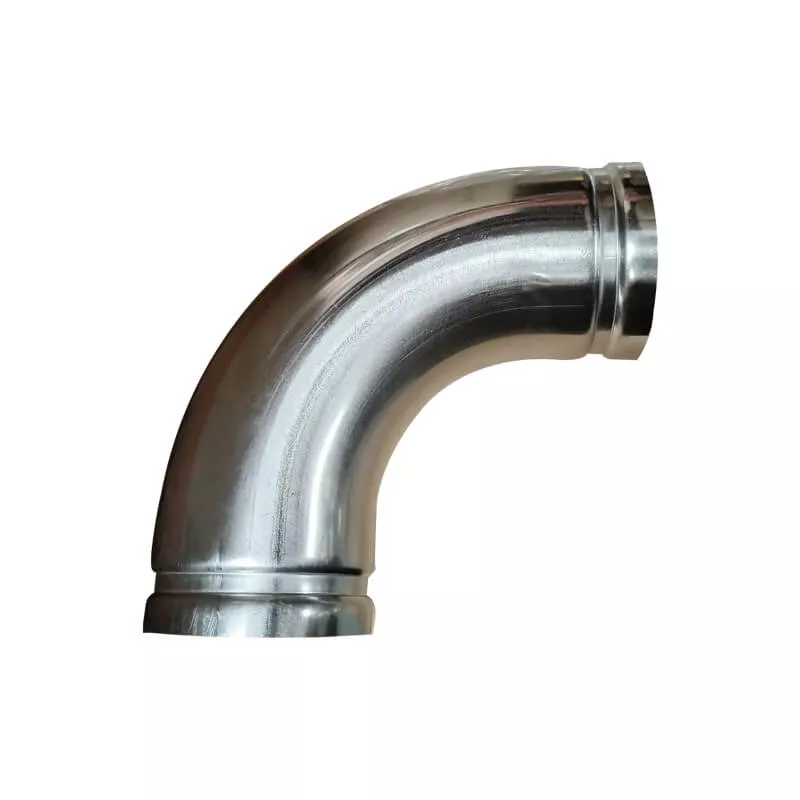

Grooved 90° elbow

Grooved 90° elbow

Category
  • Certificate: UL Listed / FM Approved
  • Standard: ANSI / UL 213C
  • Material: Ductile iron ASTM A536, 65-45-12
  • Type: Short / Standard / Long
  • Rated pressure: ≥ 175 psi (1.21 MPa)
  • Surface: Red painting / hot dip galvanized

Product Details

Grooved 90° elbow is used to connect two pipes by groove connection, so to make the pipeline turn 90 degree for changing the fluid flow direction.

Available size

Size Short radius (mm) Standard radius (mm) Ref. No.
1″ / DN25 / 33.7mm 57 57 G0101
1-1/4″ / DN32 / 42.4mm 60 70 G0102
1-1/2″ / DN40 / 48.3mm 60 70 G0103
2″ / DN50 / 60.3mm 70 83 G0104
2-1/2″ / DN65 / 73.0mm 76 95 G0105
2-1/2″ / DN65 / 76.1mm 76 95 G0106
3″ / DN80 / 88.9mm 86 108 G0107
4″ / DN100 / 114.3mm 102 127 G0108
5″ / DN125 / 139.7mm 122 140 G0109
5″ / DN125 / 141.3mm 122 140 G0110
6″ / DN150 / 165.1mm 140 165 G0111
6″ / DN150 / 168.3mm 140 165 G0112
8″ / DN200 / 219.1mm 175 197 G0113
10″ / DN250 / 273.0mm 215 229 G0114
12″ / DN300 / 323.9mm 245 254 G0115
14″ / DN350 / 355.6mm / 280 G0116 (ISO)
