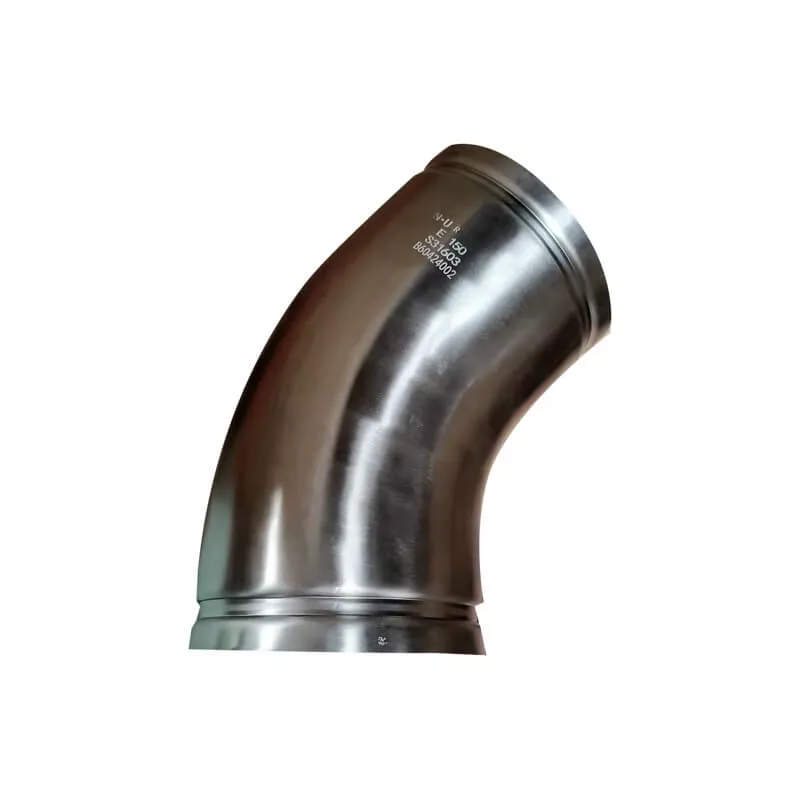

Grooved 45° elbow is used to connect two pipes by groove connection, so to make the pipeline turn 45 degree for changing the fluid flow direction.
Available size
| Size | Standard radius (mm) | Long radius (mm) | Ref. No. |
|---|---|---|---|
| 1″ / DN25 / 33.7mm | 45 | / | G0701 (UL/FM) |
| 1-1/4″ / DN32 / 42.4mm | 45 | / | G0702 (UL/FM) |
| 1-1/2″ / DN40 / 48.3mm | 45 | / | G0703 (UL/FM) |
| 2″ / DN50 / 60.3mm | 51 | 70 | G0704 (UL/FM) |
| 2-1/2″ / DN65 / 73.0mm | 57 | 76 | G0705 (UL/FM) |
| 2-1/2″ / DN65 / 76.1mm | 57 | / | G0706 (UL/FM) |
| 3″ / DN80 / 88.9mm | 64 | 86 | G0707 (UL/FM) |
| 4″ / DN100 / 114.3mm | 76 | 102 | G0708 (UL/FM) |
| 5″ / DN125 / 139.7mm | 83 | / | G0709 (UL/FM) |
| 5″ / DN125 / 141.3mm | 83 | / | G0710 (UL/FM) |
| 6″ / DN150 / 165.1mm | 89 | / | G0711 (UL/FM) |
| 6″ / DN150 / 168.3mm | 89 | 140 | G0712 (UL/FM) |
| 8″ / DN200 / 219.1mm | 108 | 184 | G0713 (UL/FM) |
| 10″ / DN250 / 273.0mm | 121 | 159 | G0714 (UL/FM) |
| 12″ / DN300 / 323.9mm | 133 | 191 | G0715 (UL/FM) |
Note: Please download our catalog for more available sizes.
