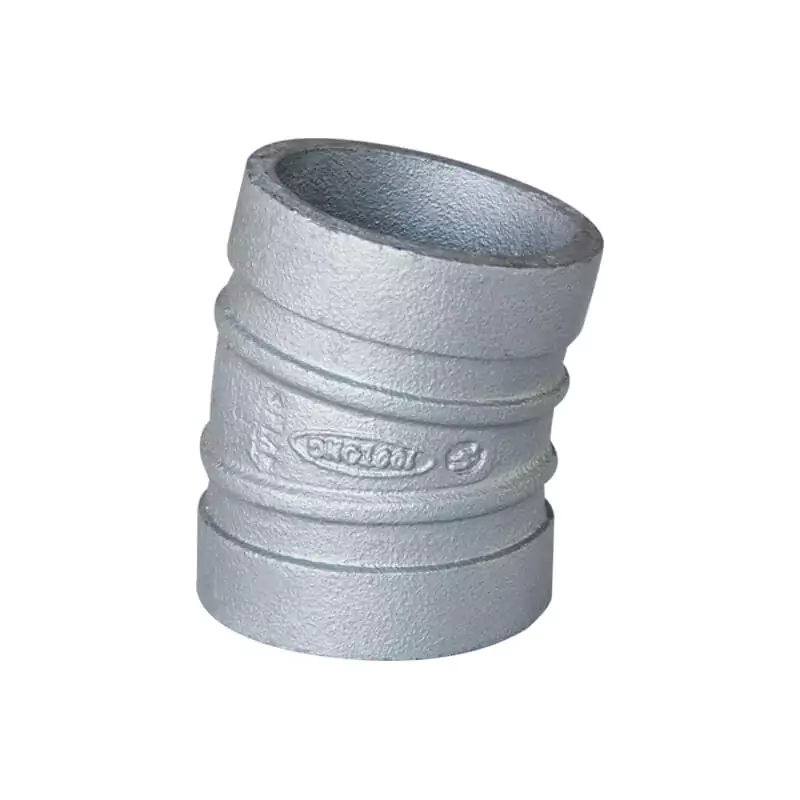

Grooved 11.25° elbow

Grooved 11.25° elbow

Category
  • Certificate: UL Listed / FM Approved
  • Standard: ANSI / UL 213C
  • Material: Ductile iron ASTM A536, 65-45-12
  • Type: Standard radius
  • Rated pressure: ≥ 175 psi (1.21 MPa)
  • Surface: Red painting / hot dip galvanized

Product Details

Grooved 11.25° elbow is used to connect two pipes by groove connection, so to make the pipeline turn 11.25 degree for changing the fluid flow direction.

Available size

Size Standard radius (mm) Ref. No.
1″ / DN25 / 33.7mm 35 G0401
1-1/4″ / DN32 / 42.4mm 35 G0402
1-1/2″ / DN40 / 48.3mm 35 G0403
2″ / DN50 / 60.3mm 35 G0404
2-1/2″ / DN65 / 73.0mm 38 G0405
2-1/2″ / DN65 / 76.1mm 38 G0406
3″ / DN80 / 88.9mm 38 G0407
4″ / DN100 / 114.3mm 48 G0408
5″ / DN125 / 139.7mm 51 G0409
6″ / DN150 / 165.1mm 51 G0410
6″ / DN150 / 168.3mm 51 G0411
8″ / DN200 / 219.1mm 51 G0412
