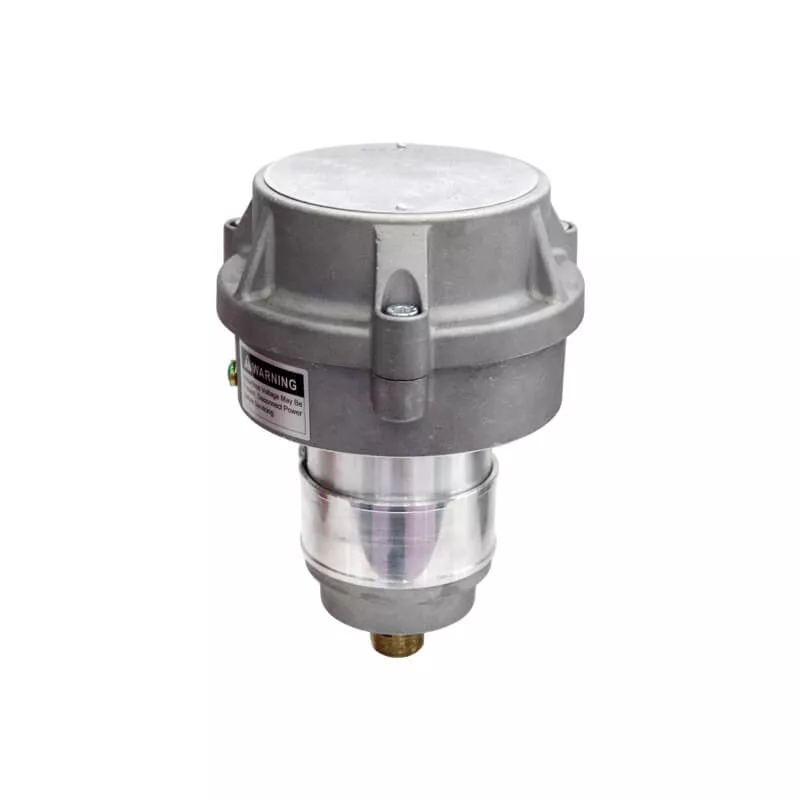

Explosion proof pressure switch

Explosion proof pressure switch

Category
  • Certificate: UL Listed / FM Approved
  • Standard: UL 753 / FM 3132, comply to NFPA 13, 13D, 13R, 72
  • Material: Aluminum alloy cover and saddle
  • Contact rating: 10A@125/250VAC, 2.5A@30VDC
  • Temperature: -40°C to 60°C
  • Operating pres.: 300 psi
  • Enclosure: IP66 for explosion proof type
  • Surface: Aluminum

Product Details

Explosion proof pressure switch is designed to detect an pressure increase or decrease from normal system pressure in automatic fire sprinkler systems located in hazardous locations.

Available size

Application Adjustment pressure range (psi) Factory set (psi) Connection Ref. No.
Mainly wet pipe system 4 ~ 20 4 ~ 8 1/2″ NPT, male V9001
Mainly dry pipe system 10 ~ 200 Incr. 130 / dec. 110 1/2″ NPT, male V9002
