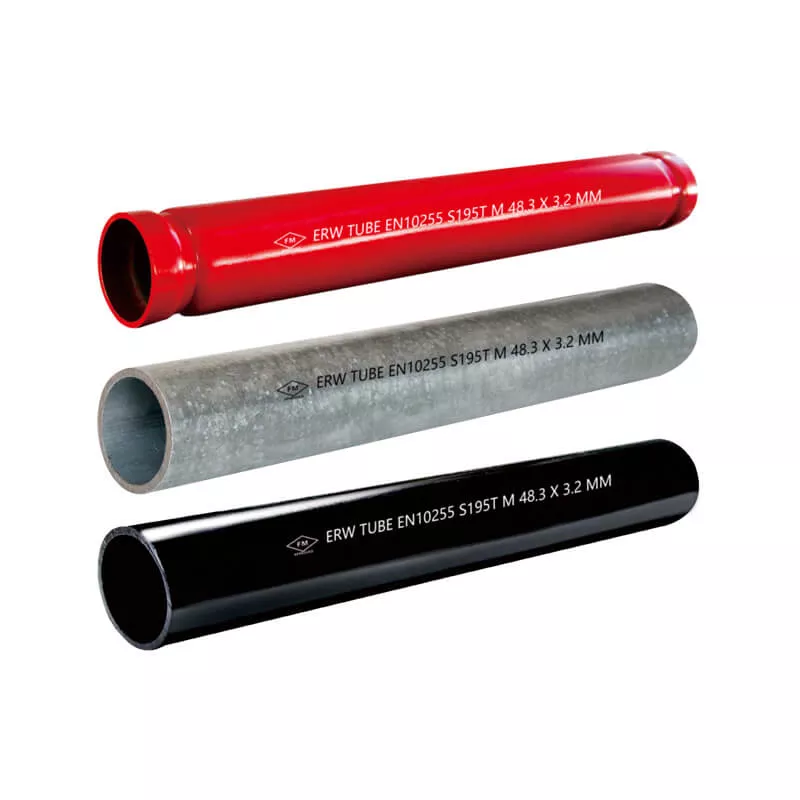

EN 10255 ERW steel tube from TPMC is produced by high-frequency welding of steel strip, featuring a longitudinal weld seam, precise dimensions, and lightweight construction.
FM Approved, it provides reliable performance in water-based fire protection systems, including wet, dry, deluge, and preaction pipelines.
Additionally, our TPMC tube is ideal for welding or threading and suitable for conveying water, gas, air, as well as for general structural applications.
Available sizes for Heavy series tube
| Outside diameter | Wall thickness | Weight (kg/m) | Test pressure (MPa) | Ref. No. |
|---|---|---|---|---|
| 1/2″ / DN15 / 21.3 mm | Heavy / 3.2 mm | 1.44 | 5.0 | P0601-H (ISO) |
| 3/4″ / DN20 / 26.9 mm | Heavy / 3.2 mm | 1.87 | 5.0 | P0602-H (ISO) |
| 1″ / DN25 / 33.7 mm | Heavy / 4.0 mm | 2.93 | 5.0 | P0603-H (ISO) |
| 1-1/4″ / DN32 / 42.4 mm | Heavy / 4.0 mm | 3.79 | 5.0 | P0604-H (ISO) |
| 1-1/2″ / DN40 / 48.3 mm | Heavy / 4.0 mm | 4.37 | 5.0 | P0605-H (ISO) |
| 2″ / DN50 / 60.3 mm | Heavy / 4.5 mm | 6.19 | 5.0 | P0606-H (ISO) |
| 2-1/2″ / DN65 / 76.1 mm | Heavy / 4.5 mm | 7.93 | 5.0 | P0607-H (ISO) |
| 3″ / DN80 / 88.9 mm | Heavy / 5.0 mm | 10.30 | 5.0 | P0608-H (ISO) |
| 4″ / DN100 / 114.3 mm | Heavy / 5.4 mm | 14.50 | 5.0 | P0609-H (ISO) |
| 5″ / DN125 / 139.7 mm | Heavy / 5.4 mm | 17.90 | 5.0 | P0610-H (ISO) |
| 6″ / DN150 / 165.1 mm | Heavy / 5.4 mm | 21.30 | 5.0 | P0611-H (ISO) |
Available sizes for Medium series tube
| Outside diameter | Wall thickness | Weight (kg/m) | Test pressure (MPa) | Ref. No. |
|---|---|---|---|---|
| 1/2″ / DN15 / 21.3 mm | Medium / 2.6 mm | 1.21 | 5.0 | P0601-M (FM) |
| 3/4″ / DN20 / 26.9 mm | Medium / 2.6 mm | 1.56 | 5.0 | P0602-M (FM) |
| 1″ / DN25 / 33.7 mm | Medium / 3.2 mm | 2.41 | 5.0 | P0603-M (FM) |
| 1-1/4″ / DN32 / 42.4 mm | Medium / 3.2 mm | 3.10 | 5.0 | P0604-M (FM) |
| 1-1/2″ / DN40 / 48.3 mm | Medium / 3.2 mm | 3.56 | 5.0 | P0605-M (FM) |
| 2″ / DN50 / 60.3 mm | Medium / 3.6 mm | 5.03 | 5.0 | P0606-M (FM) |
| 2-1/2″ / DN65 / 76.1 mm | Medium / 3.6 mm | 6.42 | 5.0 | P0607-M (FM) |
| 3″ / DN80 / 88.9 mm | Medium / 4.0 mm | 8.36 | 5.0 | P0608-M (FM) |
| 4″ / DN100 / 114.3 mm | Medium / 4.5 mm | 12.20 | 5.0 | P0609-M (FM) |
| 5″ / DN125 / 139.7 mm | Medium / 5.0 mm | 16.60 | 5.0 | P0610-M (FM) |
| 6″ / DN150 / 165.1 mm | Medium / 5.0 mm | 19.80 | 5.0 | P0611-M (FM) |
Available sizes for Type L tube
| Outside diameter | Wall thickness | Weight (kg/m) | Test pressure (MPa) | Ref. No. |
|---|---|---|---|---|
| 1/2″ / DN15 / 21.3 mm | Type L / 2.3 mm | 1.08 | 5.0 | P0601-L (ISO) |
| 3/4″ / DN20 / 26.9 mm | Type L / 2.3 mm | 1.40 | 5.0 | P0602-L (ISO) |
| 1″ / DN25 / 33.7 mm | Type L / 2.9 mm | 2.20 | 5.0 | P0603-L (ISO) |
| 1-1/4″ / DN32 / 42.4 mm | Type L / 2.9 mm | 2.82 | 5.0 | P0604-L (ISO) |
| 1-1/2″ / DN40 / 48.3 mm | Type L / 2.9 mm | 3.25 | 5.0 | P0605-L (ISO) |
| 2″ / DN50 / 60.3 mm | Type L / 3.2 mm | 4.51 | 5.0 | P0606-L (ISO) |
| 2-1/2″ / DN65 / 76.1 mm | Type L / 3.2 mm | 5.75 | 5.0 | P0607-L (ISO) |
| 3″ / DN80 / 88.9 mm | Type L / 3.2 mm | 6.76 | 5.0 | P0608-L (ISO) |
| 4″ / DN100 / 114.3 mm | Type L / 3.6 mm | 9.83 | 5.0 | P0609-L (ISO) |
| 5″ / DN125 / 139.7 mm | Type L / 4.5 mm | 15.00 | 5.0 | P0610-L (ISO) |
| 6″ / DN150 / 165.1 mm | Type L / 4.5 mm | 17.80 | 5.0 | P0611-L (ISO) |
Available sizes for Type L1 tube
| Outside diameter | Wall thickness | Weight (kg/m) | Test pressure (MPa) | Ref. No. |
|---|---|---|---|---|
| 1/2″ / DN15 / 21.3 mm | Type L1 / 2.3 mm | 1.08 | 5.0 | P0601-L1 (ISO) |
| 3/4″ / DN20 / 26.9 mm | Type L1 / 2.3 mm | 1.39 | 5.0 | P0602-L1 (ISO) |
| 1″ / DN25 / 33.7 mm | Type L1 / 2.9 mm | 2.20 | 5.0 | P0603-L1 (ISO) |
| 1-1/4″ / DN32 / 42.4 mm | Type L1 / 2.9 mm | 2.82 | 5.0 | P0604-L1 (ISO) |
| 1-1/2″ / DN40 / 48.3 mm | Type L1 / 2.9 mm | 3.24 | 5.0 | P0605-L1 (ISO) |
| 2″ / DN50 / 60.3 mm | Type L1 / 3.2 mm | 4.49 | 5.0 | P0606-L1 (ISO) |
| 2-1/2″ / DN65 / 76.1 mm | Type L1 / 3.2 mm | 5.73 | 5.0 | P0607-L1 (ISO) |
| 3″ / DN80 / 88.9 mm | Type L1 / 3.6 mm | 7.55 | 5.0 | P0608-L1 (ISO) |
| 4″ / DN100 / 114.3 mm | Type L1 / 4.0 mm | 10.80 | 5.0 | P0609-L1 (ISO) |
Available sizes for Type L2 tube
| Outside diameter | Wall thickness | Weight (kg/m) | Test pressure (MPa) | Ref. No. |
|---|---|---|---|---|
| 1/2″ / DN15 / 21.3 mm | Type L2 / 2.0 mm | 0.95 | 5.0 | P0601-L2 (ISO) |
| 3/4″ / DN20 / 26.9 mm | Type L2 / 2.3 mm | 1.38 | 5.0 | P0602-L2 (ISO) |
| 1″ / DN25 / 33.7 mm | Type L2 / 2.6 mm | 1.98 | 5.0 | P0603-L2 (ISO) |
| 1-1/4″ / DN32 / 42.4 mm | Type L2 / 2.6 mm | 2.54 | 5.0 | P0604-L2 (ISO) |
| 1-1/2″ / DN40 / 48.3 mm | Type L2 / 2.9 mm | 3.23 | 5.0 | P0605-L2 (ISO) |
| 2″ / DN50 / 60.3 mm | Type L2 / 2.9 mm | 4.08 | 5.0 | P0606-L2 (ISO) |
| 2-1/2″ / DN65 / 76.1 mm | Type L2 / 3.2 mm | 5.71 | 5.0 | P0607-L2 (ISO) |
| 3″ / DN80 / 88.9 mm | Type L2 / 3.2 mm | 6.72 | 5.0 | P0608-L2 (ISO) |
| 4″ / DN100 / 114.3 mm | Type L2 / 3.6 mm | 9.75 | 5.0 | P0609-L2 (ISO) |
