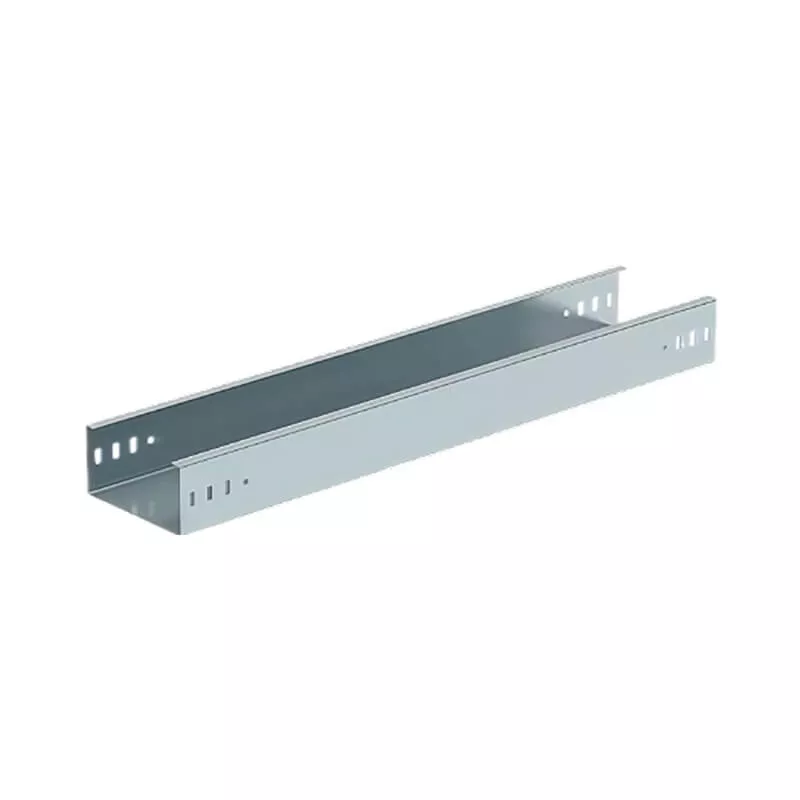

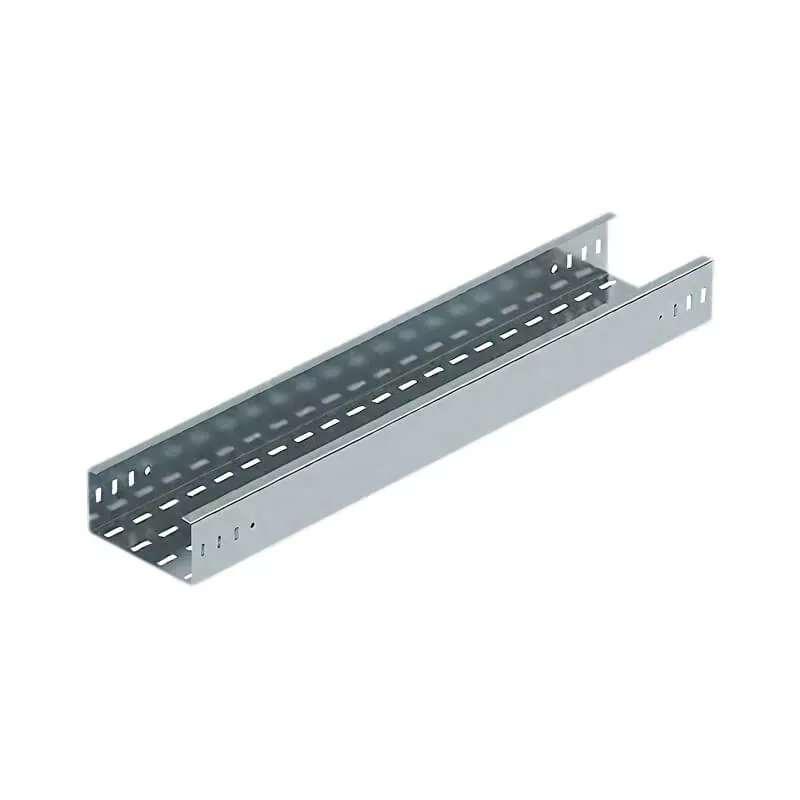

Channel cable tray is a continuous, rigid structural system used to support and route electrical cables. The straight section features a singular and U-shaped design with two side rails and a bottom that can be either solid (fully enclosed for maximum protection) or ventilated (with perforations for airflow and cable exit points), providing a balance of cable support and protection.
Available size
| Size | Width (mm) | Height (mm) | Length (mm) | Ref. No. |
|---|---|---|---|---|
| 50 x 50 | 50 | 50 | 3000 | C8101 (UL) |
| 75 x 50 | 75 | 50 | 3000 | C8102 (ISO) |
| 75 x 75 | 75 | 50 | 3000 | C8103 (ISO) |
| 100 x 50 | 100 | 50 | 3000 | C8104 (ISO) |
| 100 x 75 | 100 | 75 | 3000 | C8105 (ISO) |
| 100 x 100 | 100 | 100 | 3000 | C8106 (UL) |
| 150 x 50 | 150 | 50 | 3000 | C8107 (ISO) |
| 150 x 75 | 150 | 75 | 3000 | C8108 (ISO) |
| 150 x 100 | 150 | 100 | 3000 | C8109 (ISO) |
| 150 x 150 | 150 | 150 | 3000 | C8110 (UL) |
| 200 x 50 | 200 | 50 | 3000 | C8111 (ISO) |
| 200 x 75 | 200 | 75 | 3000 | C8112 (ISO) |
| 200 x 100 | 200 | 100 | 3000 | C8113 (UL) |
| 200 x 150 | 200 | 150 | 3000 | C8114 (ISO) |
| 200 x 200 | 200 | 200 | 3000 | C8115 (ISO) |
Note: Please download our catalog for more available sizes.
