ASTM A795 ERW steel pipe

Category Fire fighting pipe Tag Welded steel pipe

Certificate: UL Listed / FM Approved
Standard: ASTM A795 Type E Grade B / UL 852 / NFPA 13 / NFPA 14
Length: 6m / 5.8m / 11.8m / 12m / 20ft, etc.
End: Plain: square cut / Beveled: 37.5° angle per ASME B16.25 / Roll-grooved: per AWWA C606 / Threaded (NPT): per ASME B1.20.1 / Threaded (BSPT): per ISO 7-1 / BS 21
Surface: FBE / polyester resin powder / Water-based red or black paint / Hot-dip galvanized / duplex coating / Plastic lining (PE, UPVC, etc.)

Product Details

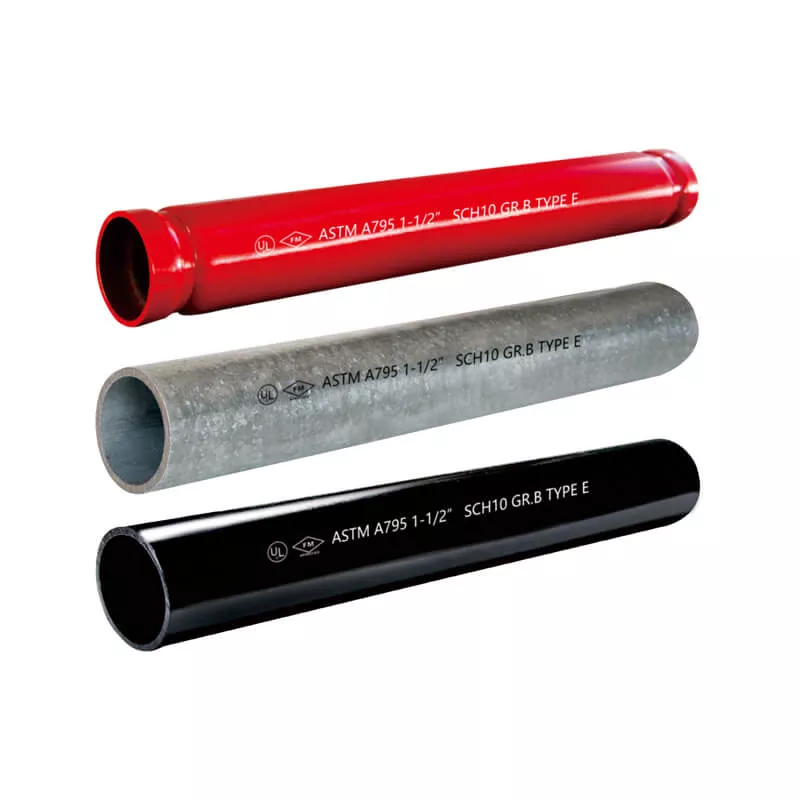

ASTM A795 ERW steel pipe from TPMC is produced by high-frequency welding of steel strip, featuring a longitudinal weld seam, precise dimensions and lightweight construction.
UL Listed and FM Approved, it features tight dimensional tolerances to ensure excellent compatibility with precision fittings and grooved connections.
Available in SCH10 for cost-effective branch lines and SCH40 for mains, risers, or high-durability needs, our TPMC pipe provides reliable performance in wet, dry, deluge, and preaction fire protection systems.

Available sizes for Schedule 10 pipe (Light-weight)

Outside diameter	Wall thickness	Weight (kg/m)	Test pressure (MPa, min)	Ref. No.
3/4″ / DN20 / 26.7 mm	SCH10 / 2.11 mm	1.28	4.8	P0202-SCH10 (UL/FM)
1″ / DN25 / 33.4 mm	SCH10 / 2.77 mm	2.09	4.8	P0203-SCH10 (UL/FM)
1-1/4″ / DN32 / 42.2 mm	SCH10 / 2.77 mm	2.69	6.9	P0204-SCH10 (UL/FM)
1-1/2″ / DN40 / 48.3 mm	SCH10 / 2.77 mm	3.11	6.9	P0205-SCH10 (UL/FM)
2″ / DN50 / 60.3 mm	SCH10 / 2.77 mm	3.93	6.9	P0206-SCH10 (UL/FM)
2-1/2″ / DN65 / 73.0 mm	SCH10 / 3.05 mm	5.26	6.9	P0207-SCH10 (UL/FM)
3″ / DN80 / 88.9 mm	SCH10 / 3.05 mm	6.46	6.9	P0208-SCH10 (UL/FM)
4″ / DN100 / 114.3 mm	SCH10 / 3.05 mm	8.37	8.3	P0209-SCH10 (UL/FM)
5″ / DN125 / 141.3 mm	SCH10 / 3.40 mm	11.58	8.3	P0210-SCH10 (UL/FM)
6″ / DN150 / 168.3 mm	SCH10 / 3.40 mm	13.85	6.9	P0211-SCH10 (UL/FM)
8″ / DN200 / 219.1 mm	– / 4.78 mm	25.26	5.5	P0212-SCH10 (UL/FM)
10″ / DN250 / 273.0 mm	– / 4.78 mm	31.62	4.8	P0213-SCH10 (UL/FM)

Note: For NPS 8″ and NPS 10″, the nominal wall thickness tabulated in ASTM A795-2021 is 4.78 mm, which differs from ASME B36.10-2022 SCH10 (NPS 8″: 3.76 mm; NPS 10″: 4.19 mm). A795 uses a custom/engineered thickness for these sizes.

Available sizes for Schedule 40 pipe (Standard-weight)

Outside diameter	Wall thickness	Weight (kg/m)	Test pressure (MPa, min)	Ref. No.
1/2″ / DN15 / 21.3 mm	SCH40 / 2.77 mm	1.27	4.8	P0201-SCH40 (ISO)
3/4″ / DN20 / 26.7 mm	SCH40 / 2.87 mm	1.69	4.8	P0202-SCH40 (ISO)
1″ / DN25 / 33.4 mm	SCH40 / 3.38 mm	2.50	4.8	P0203-SCH40 (UL/FM)
1-1/4″ / DN32 / 42.2 mm	SCH40 / 3.56 mm	3.39	6.9	P0204-SCH40 (UL/FM)
1-1/2″ / DN40 / 48.3 mm	SCH40 / 3.68 mm	4.05	6.9	P0205-SCH40 (UL/FM)
2″ / DN50 / 60.3 mm	SCH40 / 3.91 mm	5.45	6.9	P0206-SCH40 (UL/FM)
2-1/2″ / DN65 / 73.0 mm	SCH40 / 5.16 mm	8.64	6.9	P0207-SCH40 (UL/FM)
3″ / DN80 / 88.9 mm	SCH40 / 5.49 mm	11.29	6.9	P0208-SCH40 (UL/FM)
4″ / DN100 / 114.3 mm	SCH40 / 6.02 mm	16.09	8.3	P0209-SCH40 (UL/FM)
5″ / DN125 / 141.3 mm	SCH40 / 6.55 mm	21.79	8.3	P0210-SCH40 (UL/FM)
6″ / DN150 / 168.3 mm	SCH40 / 7.11 mm	28.29	8.3	P0211-SCH40 (UL/FM)
8″ / DN200 / 219.1 mm	SCH30 / 7.04 mm	36.82	8.3	P0212-SCH30 (UL/FM)
10″ / DN250 / 273.0 mm	SCH30 / 7.80 mm	51.05	6.9	P0213-SCH30 (UL/FM)

Note: For NPS 8″ and NPS 10″, the nominal wall thickness tabulated in ASTM A795-2021 aligns with ASME B36.10-2022 SCH30 (not SCH40: NPS 8″: 8.18 mm; NPS 10″: 9.27 mm).
