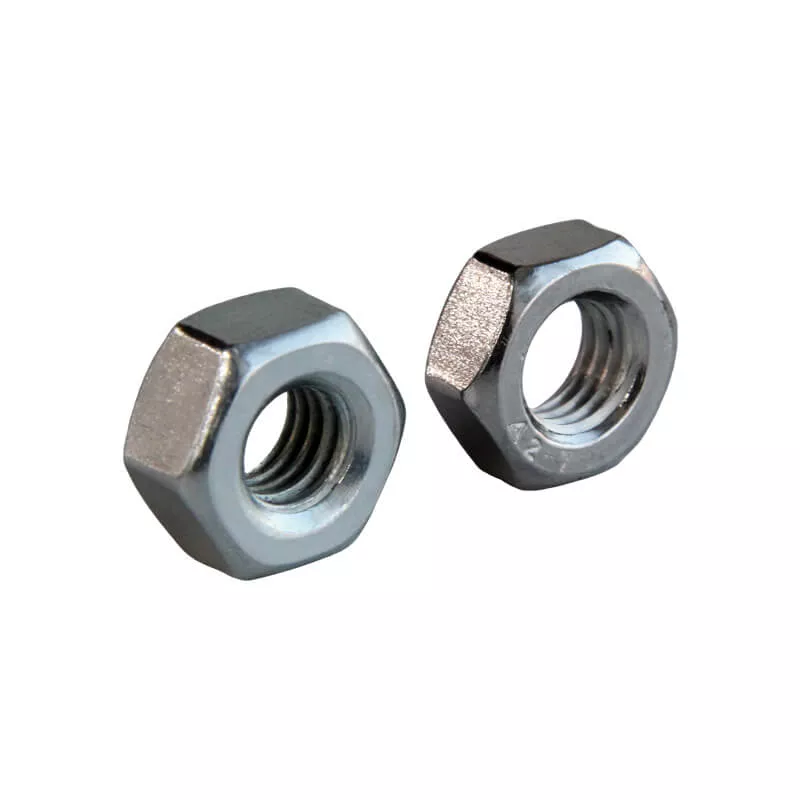

ANSI heavy hexagon nut is used with ANSI oval neck track head bolt to tighten the housing of groove coupling, and exert pressure on gasket for sealing.
Available size
| Nominal nut and thread per inch (D) | F (mm) | G (mm) | Ref. No. |
|---|---|---|---|
| 3/8″ – 16UNC | 16.99 ~ 17.74 | 19.38 ~ 20.17 | G9501 |
| 1/2″ – 13UNC | 21.59 ~ 22.22 | 24.61 ~ 25.65 | G9502 |
| 5/8″ – 11UNC | 26.19 ~ 26.97 | 29.85 ~ 31.16 | G9503 |
| 3/4″ – 10UNC | 30.78 ~ 31.75 | 35.10 ~ 36.65 | G9504 |
| 7/8″ – 9UNC | 35.41 ~ 36.53 | 40.36 ~ 42.16 | G9505 |
