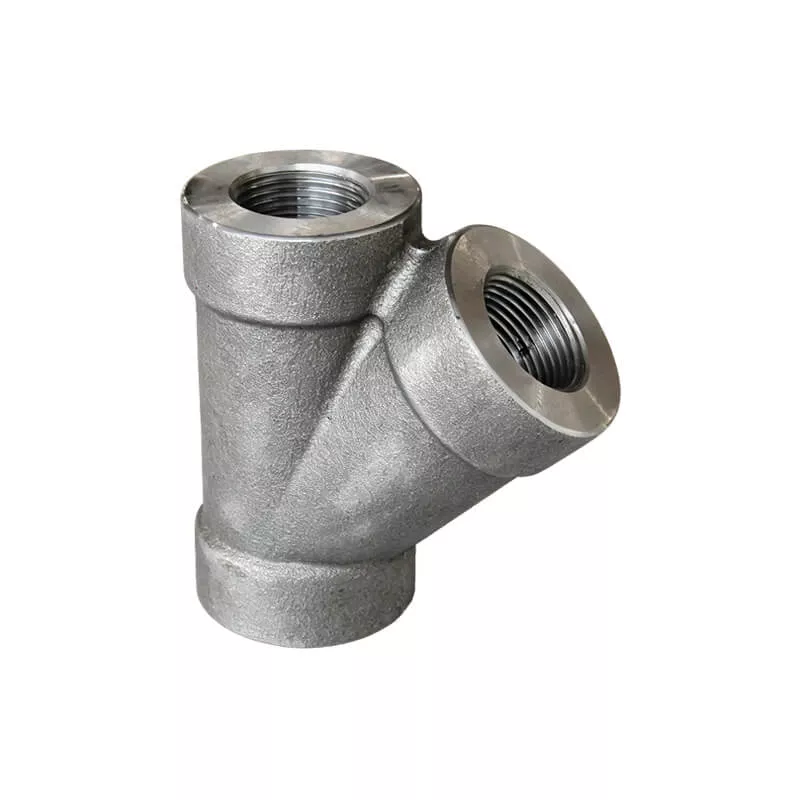

American threaded 45° Y-branch (Lateral) has a Y shape to get its name with threaded connection. The branch outlet has the same size to the main outlets, and it is used to create a branch pipeline to 45-degree direction.
Available size
| Size | Class 2000, H (mm) | Class 3000, H (mm) | Ref. No. |
|---|---|---|---|
| 1/2″ / DN15 / 21.3mm | 33 | 38 | N5001 |
| 3/4″ / DN20 / 26.7mm | 38 | 46 | N5002 |
| 1″ / DN25 / 33.4mm | 46 | 56 | N5003 |
| 1-1/4″ / DN32 / 42.2mm | 56 | 62 | N5004 |
| 1-1/2″ / DN40 / 48.3mm | 62 | 75 | N5005 |
| 2″ / DN50 / 60.3mm | 75 | 84 | N5006 |
| 2-1/2″ / DN65 / 73.0mm | 92 | / | N5007 |
