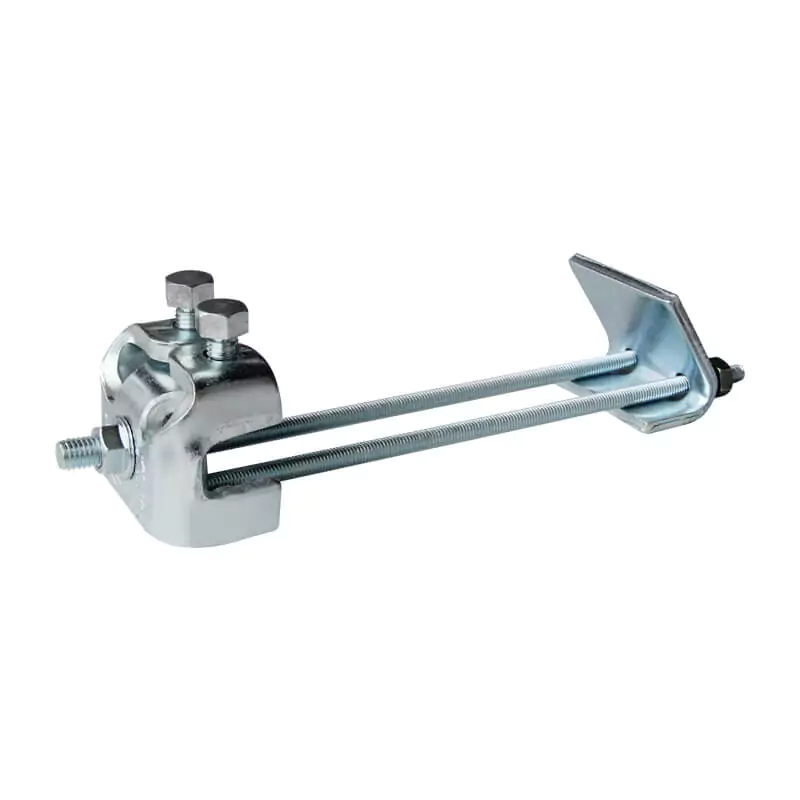

Adjustable I-Beam Attachment (I-Beam adapter) is a device to facilitate the attachment of a sway brace to a specific building structural member. Without assembly, it helps easy installation and inspection of seismic sway braces.
Available size
| I-Beam flange THK | I-Beam flange width | Rod size (RS1) | Rod size (RS2) | Ref. No. |
|---|---|---|---|---|
| 1/4″ ~ 3/4″ / 6 ~ 19 mm | 4″ ~ 8-1/2″ / 100 ~ 215 mm | 3/8″ / M10 | 1/2″ / M12 | P6311 |
| 1/4″ ~ 3/4″ / 6 ~ 19 mm | 4″ ~ 14-1/2″ /100 ~ 365 mm | 3/8″ / M10 | 1/2″ / M12 | P6312 |
| 3/4″ ~ 1-1/4″ / 19 ~ 32 mm | 4″ ~ 18″ / 100 ~ 455 mm | 3/8″ / M10 | 1/2″ / M12 | P6313 |
