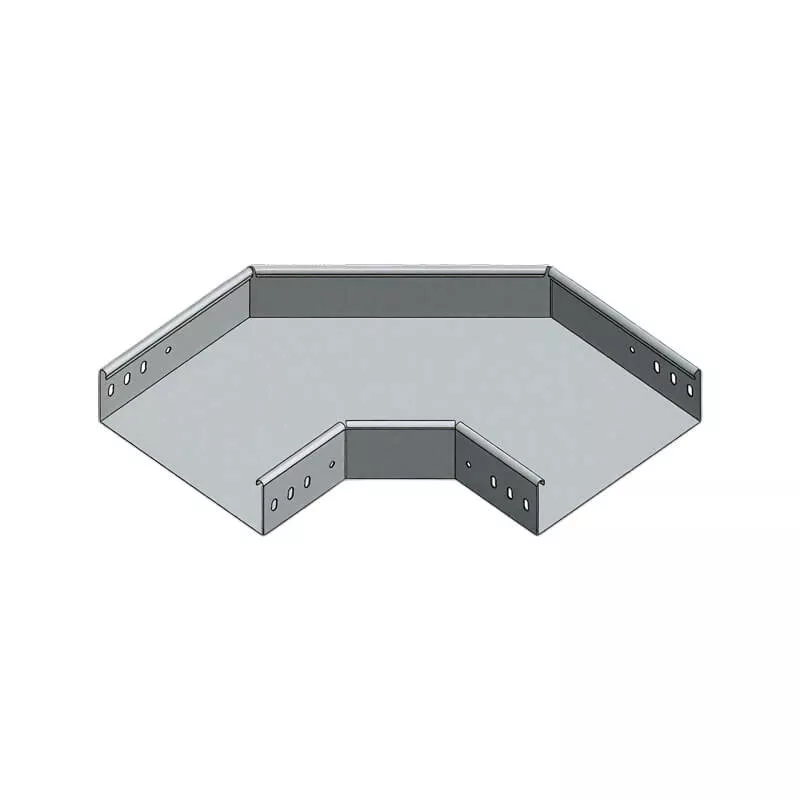

90° horizontal elbow connects two straight sections of channel cable tray to create a smooth 90‑degree turn in the horizontal direction. This rigid fitting maintains the structural integrity and load capacity of the cable tray system while facilitating cable routing around corners, obstacles, or layout requirements. It ensures reliable support and protection for power, data, and control cables across commercial, industrial, and infrastructure applications.
Available size
| Size | Width (mm) | Height (mm) | Bend radius (mm) | Ref. No. |
|---|---|---|---|---|
| 50 x 50 | 50 | 50 | 100 | C8201 (ISO) |
| 75 x 50 | 75 | 50 | 150 | C8202 (ISO) |
| 75 x 75 | 75 | 75 | 150 | C8203 (ISO) |
| 100 x 50 | 100 | 50 | 150 | C8204 (ISO) |
| 100 x 75 | 100 | 75 | 150 | C8205 (ISO) |
| 100 x 100 | 100 | 100 | 150 | C8206 (ISO) |
| 150 x 50 | 150 | 50 | 150 | C8207 (ISO) |
| 150 x 75 | 150 | 75 | 150 | C8208 (ISO) |
| 150 x 100 | 150 | 100 | 150 | C8209 (ISO) |
| 150 x 150 | 150 | 150 | 150 | C8210 (ISO) |
| 200 x 50 | 200 | 50 | 150 | C8211 (ISO) |
| 200 x 75 | 200 | 75 | 150 | C8212 (ISO) |
| 200 x 100 | 200 | 100 | 150 | C8213 (ISO) |
| 200 x 150 | 200 | 150 | 150 | C8214 (ISO) |
| 200 x 200 | 200 | 200 | 150 | C8215 (ISO) |
Note: Please download our catalog for more available sizes.
