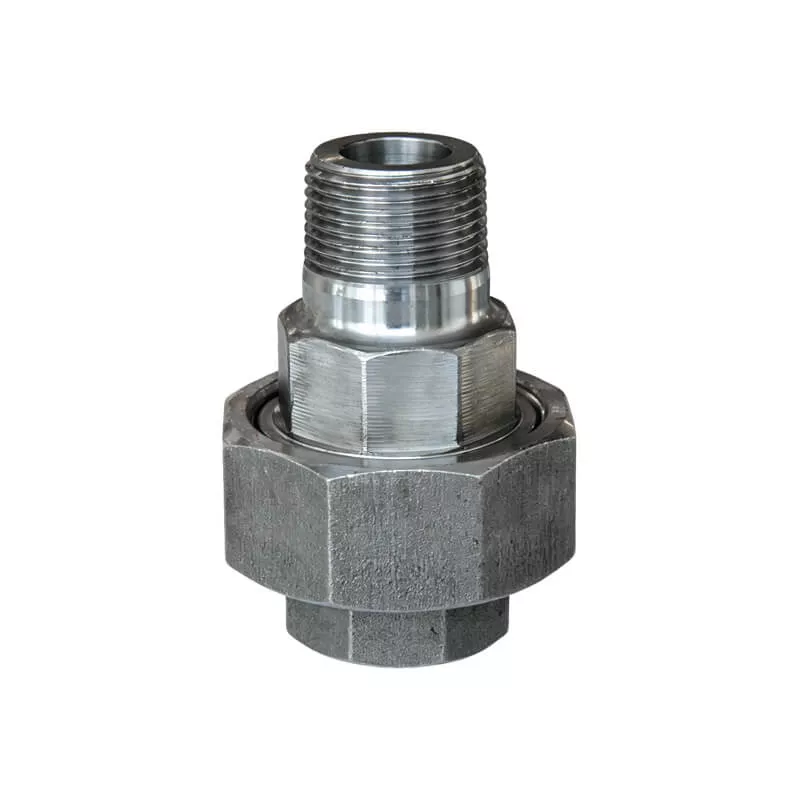

American threaded pipe union is a detachable pipe fitting with both ends threaded connection. It consists of a tail (Male part), a head (Female part), and a union nut.
Available size
| Size | Class 3000, A (mm) | Class 6000, A (mm) | Connection | Ref. No. |
|---|---|---|---|---|
| 1/2″ / DN15 / 21.3mm | 27.7 | 31.0 | FxF, MxF | N6601 |
| 3/4″ / DN20 / 26.7mm | 33.5 | 37.8 | FxF, MxF | N6602 |
| 1″ / DN25 / 33.4mm | 41.4 | 46.2 | FxF, MxF | N6603 |
| 1-1/4″ / DN32 / 42.2mm | 50.5 | 54.9 | FxF, MxF | N6604 |
| 1-1/2″ / DN40 / 48.3mm | 57.2 | 62.5 | FxF, MxF | N6605 |
| 2″ / DN50 / 60.3mm | 70.1 | 77.7 | FxF, MxF | N6606 |
| 2-1/2″ / DN65 / 73.0mm | 85.3 | 92.2 | FxF, MxF | N6607 |
| 3″ / DN80 / 88.9mm | 102.4 | 111.3 | FxF, MxF | N6608 |
