Intelligent maintained text-based exit sign (Plastic enclosure & bilingual)

Intelligent maintained text-based exit sign (Plastic enclosure & bilingual)

  • Certificate: UL Listed
  • Standard: UL 924, NFPA 70, NFPA 101, IBC
  • Feature: High brightness, addressable
  • Temperature: -5°C to 45°C
  • Installation: Ceiling or wall, surface mounting
  • Location: Indoors only, IP20

Product Details

Intelligent maintained text-based exit sign (Plastic enclosure & bilingual) integrates with a central monitoring system via its built-in networking interface, which is a continuously illuminated evacuation device installed above exit doors and along egress paths. It provides clear guidance to emergency exit, ensuring high visibility and reliable direction for occupant in low-light or smoke-obscured environments.

Available size

Type Main power Backup power Duration Ref. No.

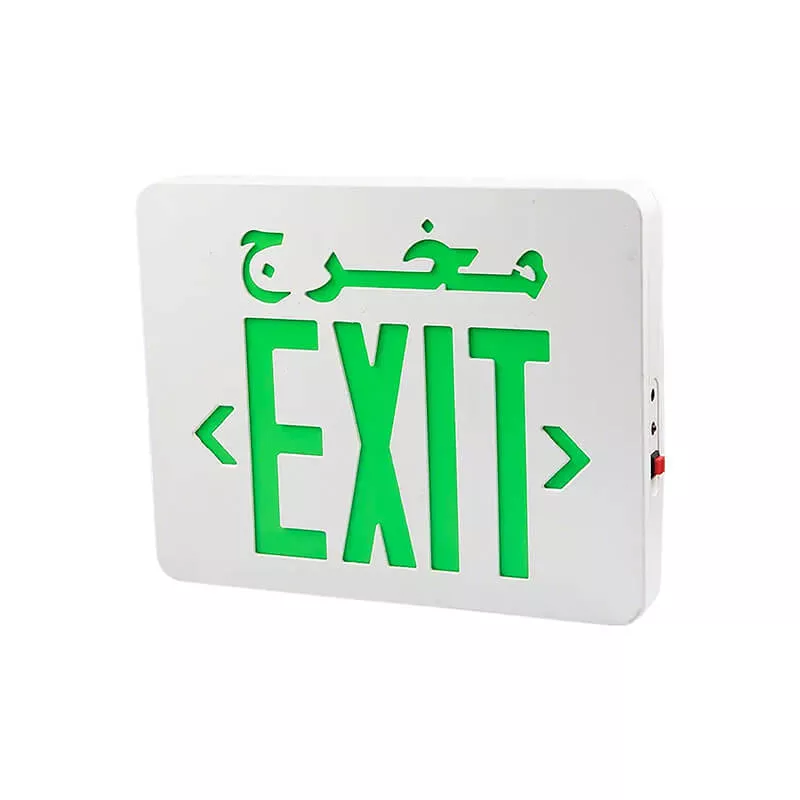

Single face, lettering مخرجEXIT + arrow, green 100 ~ 240 VAC, 50/60 Hz, consumption 2.5 W Ni-MH, 4.8 V, 600 mAh 3 hours CL3201 (UL)

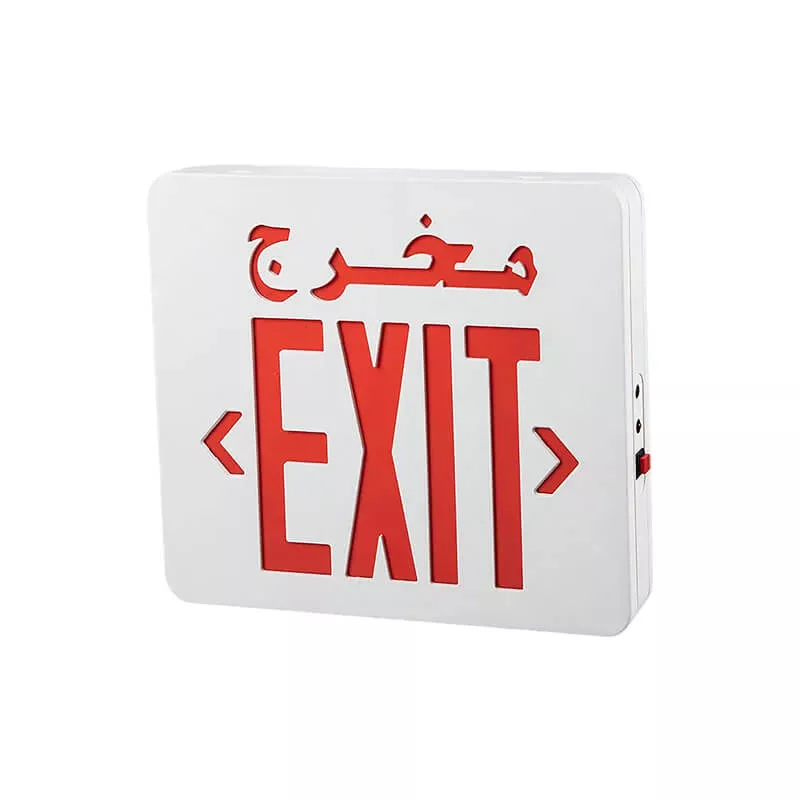

Single face, lettering مخرجEXIT + arrow, red 100 ~ 240 VAC, 50/60 Hz, consumption 2.5 W Ni-MH, 4.8 V, 600 mAh 3 hours CL3202 (UL)
Double face, lettering مخرجEXIT + arrow, green 100 ~ 240 VAC, 50/60 Hz, consumption 2.5 W Ni-MH, 4.8 V, 600 mAh 3 hours CL3203 (UL)
Double face, lettering مخرجEXIT + arrow, red 100 ~ 240 VAC, 50/60 Hz, consumption 2.5 W Ni-MH, 4.8 V, 600 mAh 3 hours CL3204 (UL)
