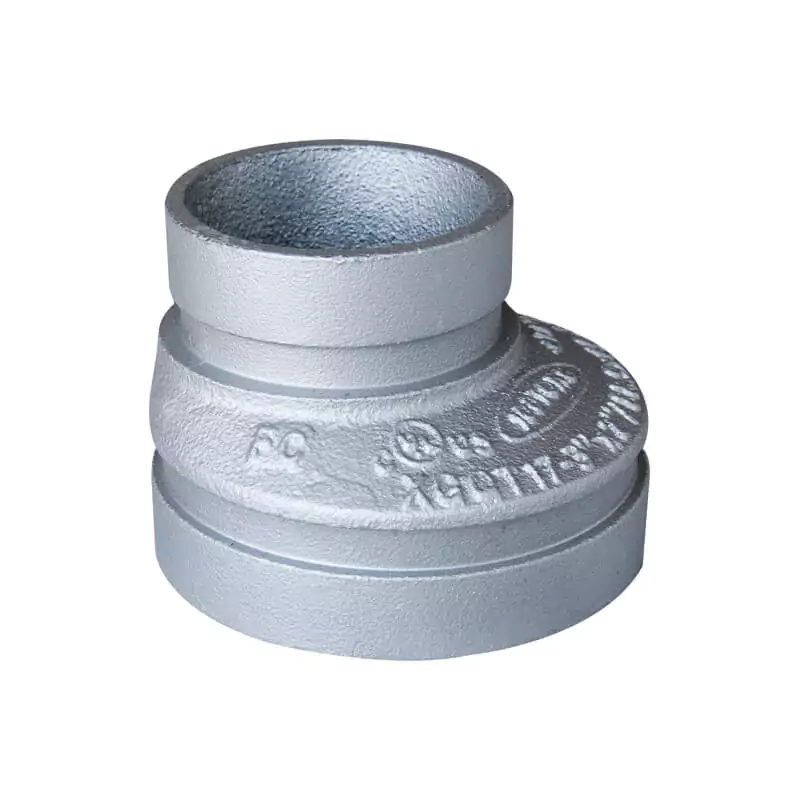

Grooved eccentric reducer

Grooved eccentric reducer

Category
  • Certificate: UL Listed / FM Approved
  • Standard: ANSI / UL 213C
  • Material: Ductile iron ASTM A536, 65-45-12
  • Rated pressure: 300 ~ 500 psi
  • Surface: Red painting / hot dip galvanized

Product Details

Grooved eccentric reducer is cone-shaped pipe fitting with groove connection, and it is used to join two pipes of different diameter at the different axis.

Available size

Size (Inch / DN / mm) End to end (mm), Short End to end (mm), Long Ref. No.
3″ x 2″ / 80 x 50 / 88.9 x 60.3 64 89 G3201
3″ x 2-1/2″ / 80 x 65 / 88.9 x 73.0 64 / G3202
3″ x 2-1/2″ / 80 x 65 / 88.9 x 76.1 64 / G3203
4″ x 2″ / 100 x 50 / 114.3 x 60.3 76 102 G3204
4″ x 2-1/2″ / 100 x 65 / 114.3 x 73.0 76 / G3205
4″ x 2-1/2″ / 100 x 65 / 114.3 x 76.1 76 102 G3206
4″ x 3″ / 100 x 80 / 114.3 x 88.9 76 102 G3207
5″ x 2-1/2″ / 125 x 65 / 139.7 x 76.1 89 / G3208
5″ x 3″ / 125 x 80 / 139.7 x 88.9 89 / G3209
5″ x 4″ / 125 x 100 / 139.7 x 114.3 89 127 G3210
6″ x 2-1/2″ / 150 x 65 / 165.1 x 76.1 102 / G3211
6″ x 3″ / 150 x 80 / 165.1 x 88.9 102 140 G3212
6″ x 4″ / 150 x 100 / 165.1 x 114.3 102 140 G3213
6″ x 5″ / 150 x 125 / 165.1 x 139.7 102 140 G3214
6″ x 3″ / 150 x 80 / 168.3 x 88.9 102 140 G3215

Note: Please download our catalog for more available sizes.
