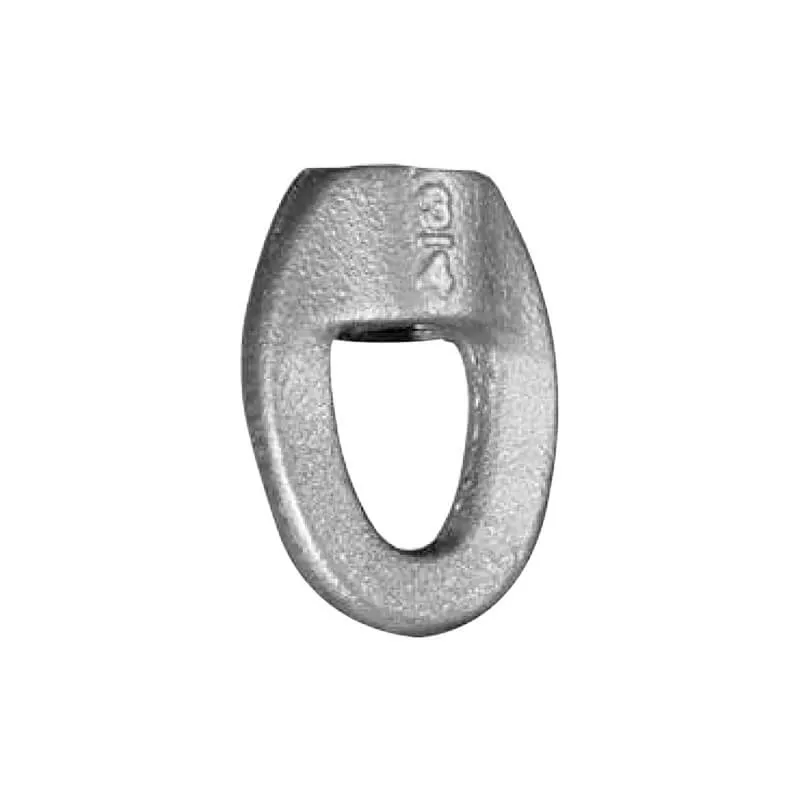

Eye socket from TPMC is a compact threaded fitting for pipe hanger assemblies. One end has a female threaded socket to accept a hanger rod, while the other end features a closed eye that slips over the bolt or pin of beam clamps, standard pipe clamps, or other structural attachments.
This design provides vertical adjustability and flexibility, making it ideal for supporting fire sprinkler branch lines and mains in fire protection systems.
Available sizes
| Rod size (RS, imperial) | Rod size (RS, metric) | Max bolt size B | Max rec. load (lbs) | Ref. No. |
|---|---|---|---|---|
| 3/8″ | M10 | 1/4″ | 730 | P5701 (ISO) |
| 1/2″ | M12 | 1/4″ | 1350 | P5702 (ISO) |
| 5/8″ | M16 | 3/8″ | 1580 | P5703 (ISO) |
| 3/4″ | M20 | 1/2″ | 1900 | P5704 (ISO) |
| 7/8″ | M22 | 1/2″ | 2200 | P5705 (ISO) |
Note: Maximum recommended loads are based on normal ambient temperatures and include a minimum safety factor of 5:1 per MSS SP-58.
