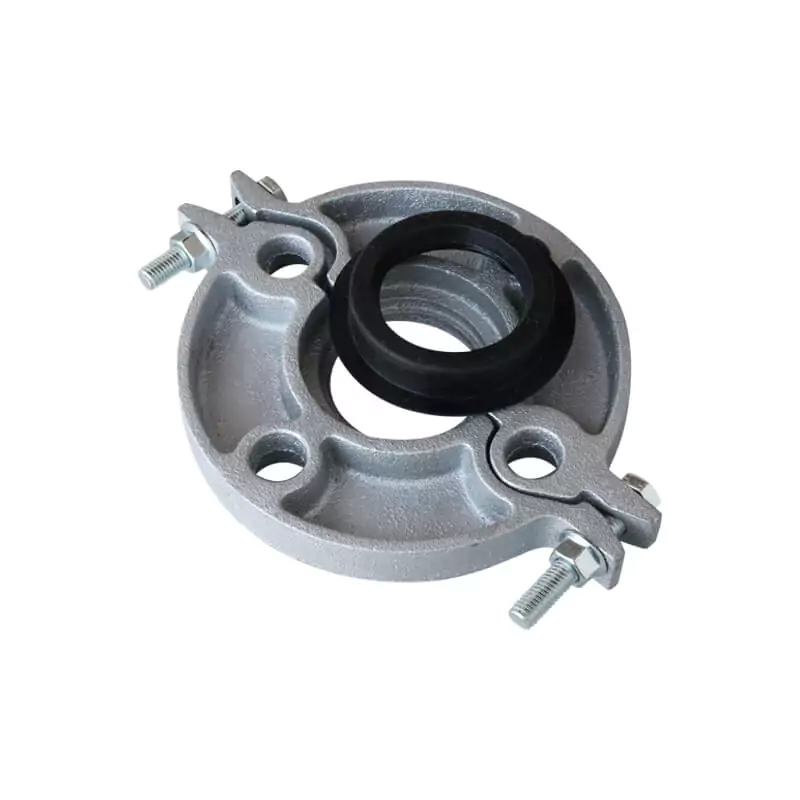

EN grooved flange two-piece (Flanged adapter) is designed for direct connection of flanged components into a grooved component, no need extra groove coupling.
Available size of PN16
| Size | Assembly bolting (n – shank bolt) | Bolting for mating flange | Flanged end connection | Ref. No. |
|---|---|---|---|---|
| 1-1/2″ / DN40 / 48.3mm | 2 – M10 x 50 | 4 x M16 | PN 16 | G4603-16 (UL/FM) |
| 2″ / DN50 / 60.3mm | 2 – M10 x 50 | 4 x M16 | PN 16 | G4604-16 (UL/FM) |
| 2-1/2″ / DN65 / 76.1mm | 2 – M10 x 50 | 4 x M16 | PN 16 | G4606-16 (UL/FM) |
| 3″ / DN80 / 88.9mm | 2 – M10 x 50 | 8 x M16 | PN 16 | G4607-16 (UL/FM) |
| 4″ / DN100 / 114.3mm | 2 – M10 x 50 | 8 x M16 | PN 16 | G4608-16 (UL/FM) |
| 5″ / DN125 / 139.7mm | 2 – M12 x 65 | 8 x M16 | PN 16 | G4609-16 (UL/FM) |
| 6″ / DN150 / 165.1mm | 2 – M12 x 65 | 8 x M20 | PN 16 | G4611-16 (UL/FM) |
| 6″ / DN150 / 168.3mm | 2 – M12 x 65 | 8 x M20 | PN 16 | G4612-16 (UL/FM) |
| 8″ / DN200 / 219.1mm | 2 – M10 x 70 | 12 x M20 | PN 16 | G4613-16 (UL/FM) |
| 10″ / DN250 / 273.0mm | 2 – M10 x 70 | 12 x M24 | PN 16 | G4614-16 (UL/FM) |
| 12″ / DN300 / 323.9mm | 2 – M10 x 70 | 12 x M24 | PN 16 | G4615-16 (UL/FM) |
| 14″ / DN350 / 355.6mm | / | 16 x M24 | PN 16 | G4616-16 (UL) |
Note: Please download our catalog for more available sizes.
