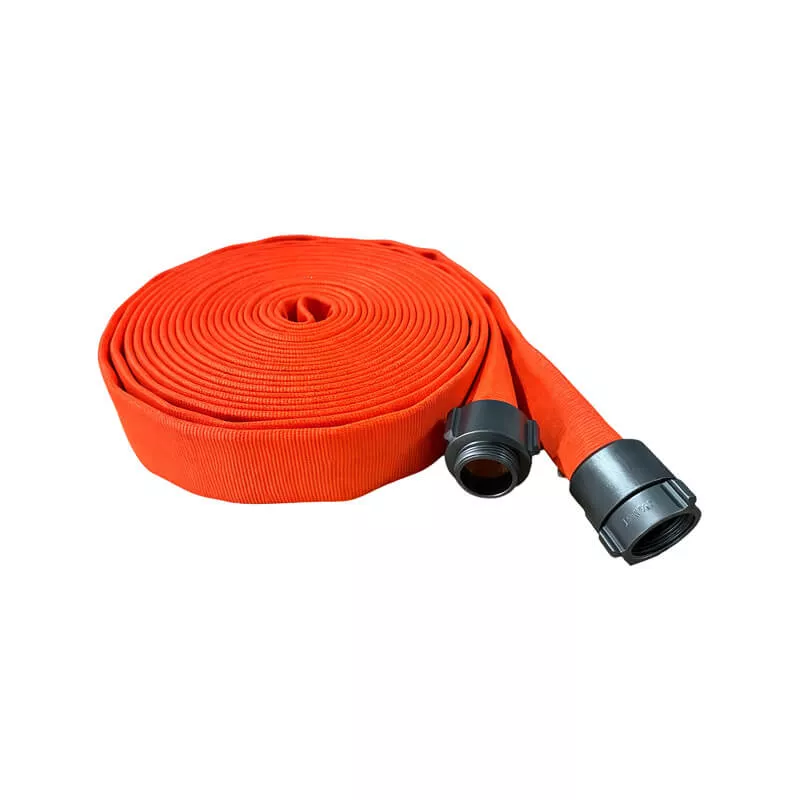

Double jacket fire hose

Category American hose rack assembly Tag Fire hose

Certificate: UL Listed / FM Approved
Standard: UL 19, NFPA 1961 / 1962
Feature: Double jacket, strong
Color: White, or impregnated yellow, red, etc.
Ratings: Ozone resistance
Temperature: -50°C to 70°C

Product Details

Double jacket fire hose is usually used as fire attack hose, high rise backpacks hose, supply line hose. It highly resists abrasion and withstands repeated high pressures than other hoses, very strong and durable, but also flexible.

Available size (Source 1 with UL or FM)

Size	Lining	Service pressure (psi)	Ref. No.
1-1/2″	EPDM	300	F4201 (UL)
2-1/2″	EPDM	300	F4202 (UL)
1-1/2″	EPDM	400	F4203 (UL)
1-3/4″	EPDM	400	F4204 (UL)
2″	EPDM	400	F4205 (UL)
2-1/2″	EPDM	400	F4206 (UL)
3″	EPDM	400	F4207 (UL)
1-1/2″	TPU	400	F4208 (UL)
1-3/4″	TPU	400	F4209 (UL)
3″	TPU	400	F4210 (UL)
1-1/2″	EPDM	400	F4211 (FM)
1-3/4″	EPDM	400	F4212 (FM)
2″	EPDM	400	F4213 (FM)
2-1/2″	EPDM	400	F4214 (FM)

Note:
1. The couplings are pre-assembled on both ends of fire hose through expansion rings.
2. For F4201 to F4210, please refer to UL certificate (Cert No EX27792) as our TPMC brand.

Available size (Source 2 with UL or FM)

Size	Lining	Service pressure (psi)	Ref. No.
2-1/2″	EPDM	400	F4221 (UL)
1-1/2″	EPDM	400	F4222 (FM)
1-3/4″	EPDM	400	F4223 (FM)
2-1/2″	EPDM	400	F4224 (FM)
1-1/2″	TPU	400	F4225 (FM)
1-3/4″	TPU	400	F4226 (FM)
2-1/2″	TPU	400	F4227 (FM)
