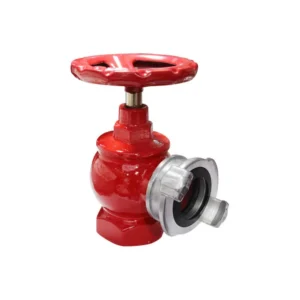

Storz outlet angle type landing valve is a kind of wet landing valve with 90° direction threaded outlet to inlet fitted an extra Storz adapter. It is normally located at discharge points of a tall building where the supply of water is via wet riser. And layflat hose is coupled into the landing valve to provide water to the location of the fire.
Available size
| Size | Inlet | Outlet | Working pressure (bar) | Ref. No. |
|---|---|---|---|---|
| DN 40 | BSPP (G) 1.5″, M or F | Storz 38, 1.5″ | 16 | FE1711 |
| DN 50 | BSPP (G) 2″, M or F | Storz C, 2″ | 16 | FE1712 |
| DN 65 | BSPP (G) 2.5″, M or F | Storz 65, 2.5″ | 16 | FE1713 |
| DN 80 | BSPP (G) 3″, M or F | Storz 65, 2.5″ | 16 | FE1714 |
