Silent globe check valve

Silent globe check valve

Category
  • Certificate: FM Approved
  • Standard: NFPA 20
  • Connection: Flanged as ASME B16.1 Class 125, or B16.42 Class 150 / 300
  • W. pressure: 200 / 300 psi
  • Installation: Vertical or horizontal
  • Surface: Blue / red epoxy coating

Product Details

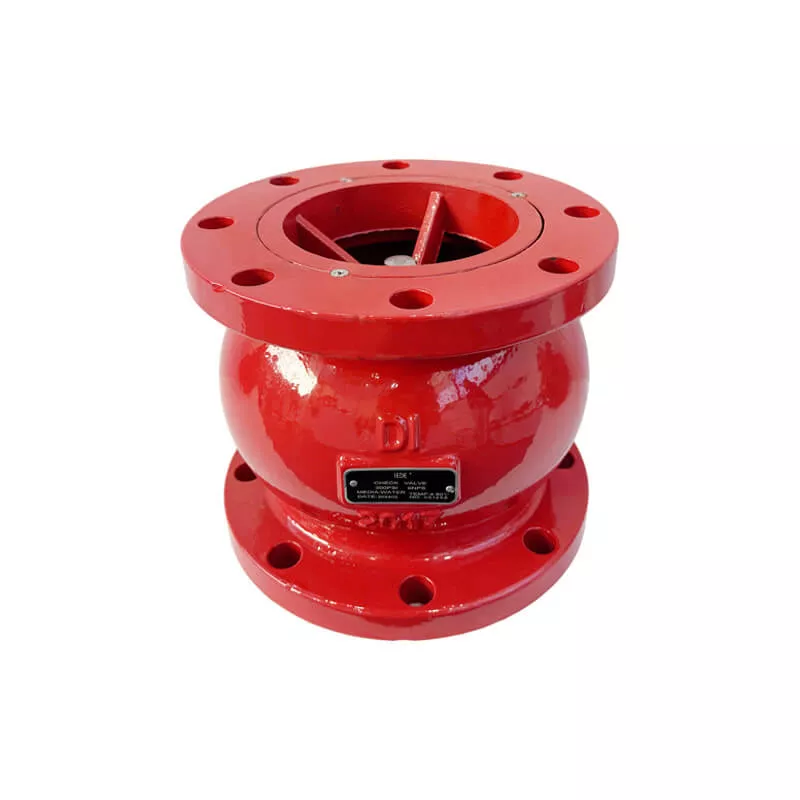

Silent globe check valve is used in pump application for quick & quiet closure to tackle severe water hammer. It has a spring-loaded poppet that allows the valve to close at 1/4 psi before flow reversal occurs.

Available size (Source 1 with FM)

Size Working pressure (psi) Ref.No.
2-1/2″ / DN65 200 U5601 (FM)
3″ / DN80 200 U5602 (FM)
4″ / DN100 200 U5603 (FM)
5″ / DN125 200 U5604 (FM)
6″ / DN150 200 U5605 (FM)
8″ / DN200 200 U5606 (FM)
10″ / DN250 200 U5607 (FM)
12″ / DN300 200 U5608 (FM)

Note: EN/BS flanged end connection is also available, including EN 1092-2 PN10, PN16, or PN25.



Available size (Source 2 with ISO)

Size Working pressure (psi) Ref.No.
2″ / DN50 300 U5611 (ISO)
2-1/2″ / DN65 300 U5612 (ISO)
3″ / DN80 300 U5613 (ISO)
4″ / DN100 300 U5614 (ISO)
5″ / DN125 300 U5615 (ISO)
6″ / DN150 300 U5616 (ISO)
8″ / DN200 300 U5617 (ISO)
10″ / DN250 300 U5618 (ISO)
12″ / DN300 300 U5619 (ISO)

Note: EN/BS flanged end connection is also available, including EN 1092-2 PN10, PN16, or PN25.
