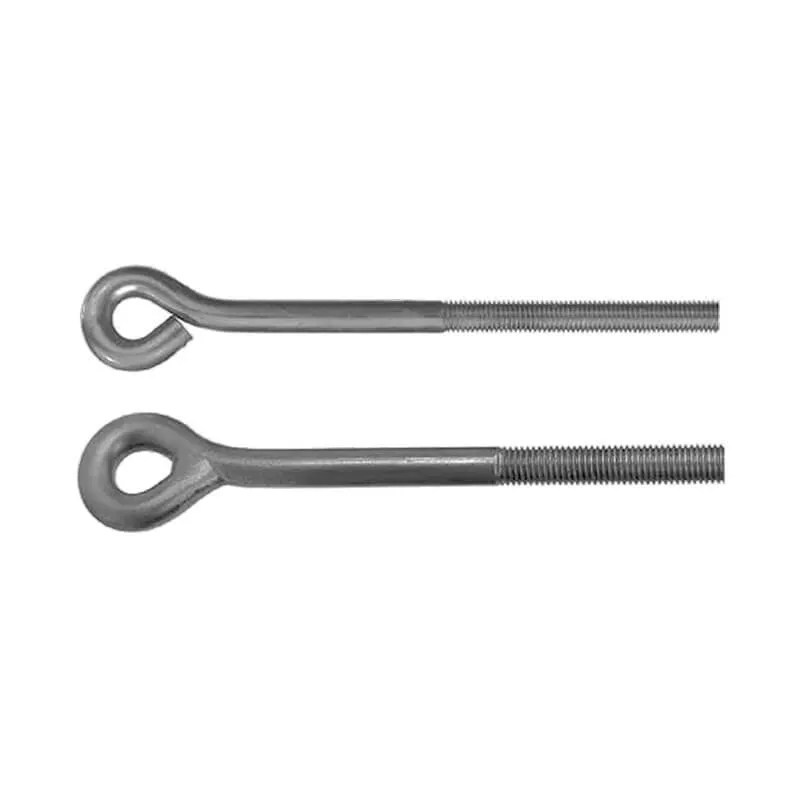

Eye rod from TPMC is a specialized hanger rod with one end formed into a closed eye (circular or pear-shaped) and the opposite end threaded like a standard hanger rod. The eye provides a hinged connection, allowing rotational movement for easy attachment to structural lug or beam clamp. It is widely used in trapeze hangers, spring supports, seismic bracing, and any application requiring a swivel or pinned joint.
Available sizes (Bent eye rod)
| Rod size (RS, imperial) | Rod size (RS, metric) | Eye insider diameter | Length (L, mm) | Ref. No. |
|---|---|---|---|---|
| 3/8″ | M10 | 5/8″ | 200 ~ 1850 | P8303 (ISO) |
| 1/2″ | M12 | 3/4″ | 200 ~ 1850 | P8304 (ISO) |
| 5/8″ | M16 | 7/8″ | 200 ~ 1850 | P8305 (ISO) |
| 3/4″ | M20 | 1″ | 200 ~ 1850 | P8306 (ISO) |
| 7/8″ | M22 | 1-1/8″ | 200 ~ 1850 | P8307 (ISO) |
| 1″ | M24 | 1-1/4″ | 200 ~ 1850 | P8308 (ISO) |
| 1-1/4″ | M30 | 1-1/2″ | 200 ~ 1850 | P8309 (ISO) |
Note: Load ratings are based on carbon steel material, minimum safety factor 5:1, and are valid at normal temperature range -29°C to 343°C.
Available sizes (Welded eye rod)
| Rod size (RS, imperial) | Rod size (RS, metric) | Eye insider diameter | Length (L, mm) | Ref. No. |
|---|---|---|---|---|
| 3/8″ | M10 | 5/8″ | 200 ~ 1850 | P8323 (ISO) |
| 1/2″ | M12 | 3/4″ | 200 ~ 1850 | P8324 (ISO) |
| 5/8″ | M16 | 7/8″ | 200 ~ 1850 | P8325 (ISO) |
| 3/4″ | M20 | 1″ | 200 ~ 1850 | P8326 (ISO) |
| 7/8″ | M22 | 1-1/8″ | 200 ~ 1850 | P8327 (ISO) |
| 1″ | M24 | 1-1/4″ | 200 ~ 1850 | P8328 (ISO) |
| 1-1/4″ | M30 | 1-1/2″ | 200 ~ 1850 | P8329 (ISO) |
Note: Load ratings are based on carbon steel material, minimum safety factor 5:1, and are valid at normal temperature range -29°C to 343°C.
