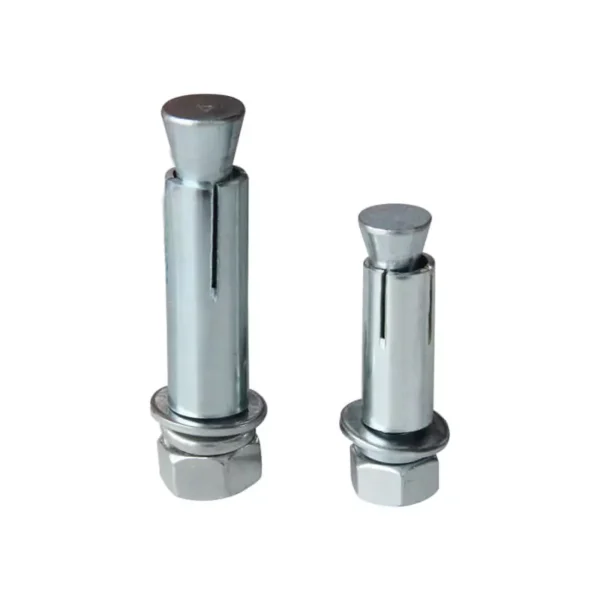

Expansion anchor bolt is a special threaded connector, and it consists of the bolt, sleeve, hexagon nut, spring washer and flat washer. It is usually used to fix the pipe support, pipe hanger and pipe bracket on the wall, floor or column.
Available size (Inch / imperial)
| Size | Length | Dia | Ref. No. |
|---|---|---|---|
| 3/8″ | 3″ | 3/8″ | P7503 |
| 1/2″ | 3-3/4″ ~ 5-1/2″ | 1/2″ | P7504 |
| 5/8″ | 4-3/4″ ~ 6″ | 5/8″ | P7506 |
| 3/4″ | 5-1/2″ ~ 8-1/2″ | 3/4″ | P7507 |
Available size (Metric)
| Size | Length (mm) | Dia (mm) | Ref. No. |
|---|---|---|---|
| M6 | 60 | 8 | P7521 |
| M8 | 80 | 10 | P7522 |
| M10 | 100 | 12 | P7523 |
| M12 | 120 | 16 | P7524 |
| M14 | 120 | 18 | P7525 |
| M16 | 150 | 20 | P7526 |
| M20 | 200 | 24 | P7527 |
